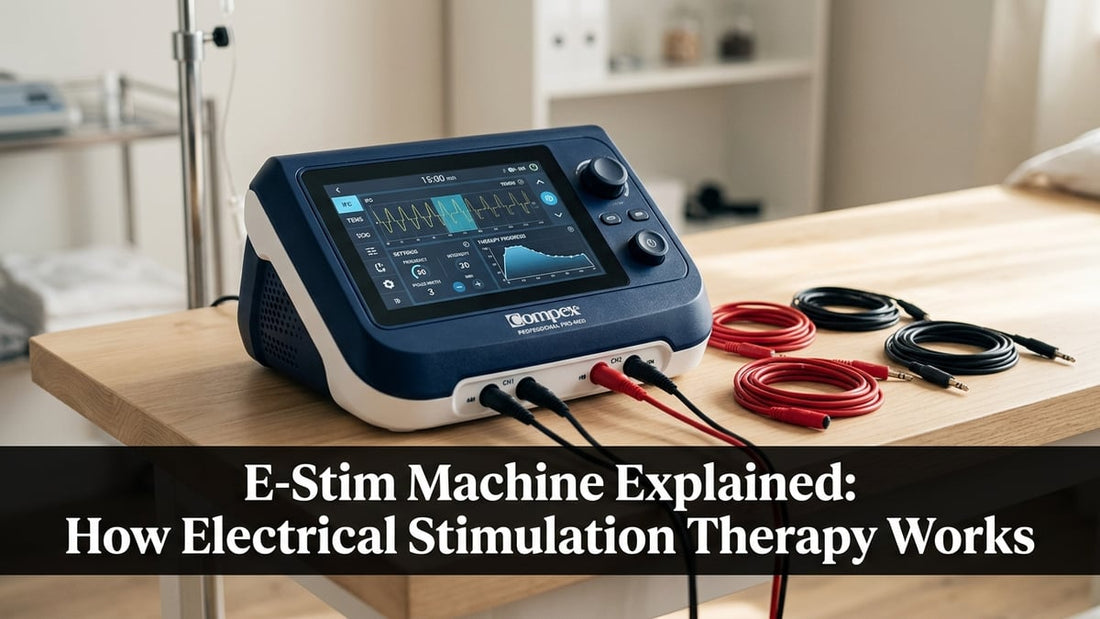

E-Stim Machine Explained: How Electrical Stimulation Therapy Works
Discover how targeted electrical pulses relieve pain, rebuild muscle, and accelerate recovery in this complete guide to e-stim therapy.
An e-stim machine delivers controlled electrical current through surface electrodes to depolarize nerve membranes, triggering action potentials that produce pain modulation, muscle contraction, or cellular-level tissue effects depending on the waveform, frequency, pulse width, and intensity the practitioner selects.
- An e-stim machine works by shifting a nerve membrane past its firing threshold, generating an action potential the tissue treats as a voluntary signal from the brain.
- Four to twelve waveforms: Clinical devices carry anywhere from four to twelve waveforms, and that range matters because each waveform preferentially recruits different fiber types for different treatment goals.
- TENS, NMES, IFC target differently: TENS modulates pain through sensory fibers without requiring muscle contraction, NMES explicitly drives motor nerves to contract muscle, and IFC uses intersecting sine waves to reach deeper tissue comfortably.
- Ultrasound depth: 1 MHz vs. 3 MHz: Combination units add real clinical value because 1 MHz ultrasound reaches roughly 3 to 5 cm deep while 3 MHz stays under 2 cm, letting a single session address tissue at two different depths.
- Start with your waveform list: Before comparing devices, write down the specific waveforms your practice actually uses regularly, because that list will immediately narrow the field to the units that fit your protocols.
Where to start
Vectra Genisys 4-Channel Electrotherapy & Ultrasound Combination System with Cart
Chattanooga Intelect Legend 2 4-Channel Electrotherapy & Ultrasound Combination System
What an E-Stim Machine Actually Does
An e-stim machine delivers controlled electrical current to tissue through surface electrodes, triggering physiological responses that would otherwise require voluntary muscle contraction or mechanical intervention. The current mimics the body's own nerve signals closely enough that the tissue responds as if the command came from the central nervous system.
The fundamental mechanism is depolarization. When current passes through the skin and reaches a nerve membrane, it shifts the membrane's resting potential past threshold, generating an action potential that travels along the axon just as a voluntary signal would. Depending on which nerve fibers are recruited and at what frequency, the result can be sensory-only stimulation (the patient feels a tingling but no contraction), a tetanic muscle contraction, or a rhythmic twitch sequence. The practitioner controls those outcomes by adjusting waveform, frequency, pulse width, and intensity.
This is not heat therapy or vibration. The current is doing neurophysiological work, and the clinical effect depends on selecting parameters that match the target tissue and the therapeutic goal. A frequency that gates pain through the gate-control mechanism (typically 80-150 Hz for TENS) is not the same as one that fatigues a spastic muscle or rebuilds atrophied fibers. Most clinical e-stim machines on the market carry multiple waveform programs precisely because the required parameters vary that much across applications.
The Main Waveforms and What They Treat
The waveform is the shape of the electrical pulse, and it determines which fibers the current preferentially recruits. Clinical devices carry anywhere from four to twelve waveforms. The Chattanooga Intelect Legend 2, for example, includes twelve: VMS, Interferential, Pre-modulated, Symmetrical Biphasic, Asymmetrical Biphasic, HAN, Microcurrent, VMS Burst, Russian, Direct Current, High Volt, and VMS FR. That range covers essentially every evidence-based application in physical medicine.
Interferential current (IFC) uses two medium-frequency sine waves slightly offset from each other, typically around 4,000 Hz carrier frequency. Where the waves intersect in tissue, they produce a low-frequency beat frequency (usually 1-150 Hz, adjustable) that penetrates more deeply than a low-frequency signal alone without the skin resistance that limits conventional TENS. Research on IFC consistently documents reductions in musculoskeletal pain, and it remains a first-line modality for post-surgical edema and deep joint pain. Understanding how the interference pattern forms and why electrode placement matters so much is essential before moving from preset protocols to manual parameter adjustment.
Russian current is a 2,500 Hz medium-frequency sine wave burst-modulated at 50 bursts per second, developed originally for athletic muscle conditioning. It recruits fast-twitch fibers preferentially and produces stronger contractions than low-frequency waveforms at comparable patient comfort. Microcurrent sits at the other extreme, delivering current below the sensory threshold (typically under 1 mA), targeting cellular-level processes including ATP synthesis and protein synthesis rather than nerve depolarization. HAN (High Acupuncture NMES) alternates between low and high frequencies, and several Chattanooga devices implement this as a dispense-and-disperse mode that modulates between 2 Hz and 70 Hz to prevent analgesic tolerance from developing during extended treatment sessions.
TENS, NMES, and IFC: How They Differ in Practice
The terms TENS, NMES, and IFC are often used interchangeably in marketing, but they describe distinct physiological targets. TENS (transcutaneous electrical nerve stimulation) targets sensory afferent fibers for pain modulation. It does not need to produce a visible muscle contraction, and in conventional high-frequency TENS it specifically avoids recruiting motor fibers to keep patient comfort high during extended sessions.
NMES (neuromuscular electrical stimulation) explicitly targets motor nerves to produce muscle contractions. The applications include preventing disuse atrophy in immobilized limbs, re-educating muscle activation patterns after neurological injury, and augmenting voluntary strength training. How NMES contraction strength scales with pulse width and amplitude, and why that relationship shifts in denervated tissue, is one of the more clinically consequential details practitioners need to understand before using it unsupervised.
The Chattanooga Primera is a straightforward example of a device that splits these purposes cleanly: eight TENS programs for temporary pain relief and six NMES programs for muscle performance, each with parameters optimized for their respective targets. Higher-end combination systems blur this division by allowing simultaneous or alternating delivery across channels, which matters in post-operative rehabilitation where pain management and muscle re-education are occurring together.
Single-Channel vs. Multi-Channel: What the Channel Count Changes
Channel count is one of the first decisions when specifying an e-stim machine for a clinical setting. A channel is an independent stimulation output, meaning each one can carry different parameters and drive its own electrode pair. A two-channel device treats one area or one muscle group at a time, possibly with two electrode pairs positioned to produce crossing current paths. A four-channel device can treat two separate areas simultaneously or use all four outputs on a single complex region.
For solo practitioners seeing patients one at a time, a two-channel unit covers most applications. The Chattanooga Intelect Transport carries two channels and is explicitly designed for single-practitioner portability, with battery power and a mounting system that accommodates tabletop, wall mount, or mobile cart use. The Richmar TheraTouch CX4 and the Vectra Genisys take the opposite approach: four independent channels that can run concurrent treatments, and the Richmar specifically documents a multi-patient function allowing the practitioner to treat up to three patients at once with a single device.
The tradeoff between channel count, cost, and how patient throughput affects the calculation matters most in a busy outpatient or sports medicine context, where four-channel capability can meaningfully reduce per-patient setup time and device cost per treatment. For a home-visit physiotherapist, carrying a four-channel unit means extra weight without proportional gain.
Electrotherapy and Ultrasound Combination Units
A significant portion of clinical e-stim machines are sold as combination systems that deliver both electrical stimulation and therapeutic ultrasound from the same device. The practical case for combining them is straightforward: ultrasound at 1 MHz penetrates to deeper tissues (roughly 3-5 cm), and at 3 MHz it has more superficial effect (under 2 cm). When used together with electrical stimulation, the two modalities can address tissue at different depths within a single treatment session, and some protocols apply them simultaneously to the same area.
The Chattanooga Intelect Legend 2 illustrates this well. Its 1 MHz and 3 MHz ultrasound frequencies can be used independently or in direct combination with any of its twelve electrotherapy waveforms, and the 7-inch capacitive touchscreen shows real-time treatment progress for both modalities. Whether combination units are genuinely worth the price premium over separate devices depends on how often a clinic actually uses both in the same session. The cost-per-modality comparison for busy versus low-volume practices shifts more than most buyers expect.
The Vectra Genisys takes the combination concept further than any other unit in this category. Its modular architecture consolidates up to six therapeutic modalities: ultrasound, electrotherapy, combined ultrasound and electrotherapy, laser, sEMG, and sEMG with stimulation. Crucially, the modular design means a clinic can start with the modalities it needs now and add hardware later without replacing the base unit. All ultrasound and laser applicators are interchangeable and carry Electronic Signature technology, so the unit recognizes a plugged-in applicator automatically. The included 5 cm2 ultrasound applicator also has a head warming feature for patient comfort and is waterproof for underwater treatments.
Electrode Placement and Parameter Selection
Even the most capable e-stim machine produces poor results if the electrodes are placed incorrectly. Current flows along the path of least resistance between the two electrodes, so placement determines which structures are actually recruited. For motor applications, one electrode is typically positioned over the motor point of the target muscle, the location where the motor nerve enters the muscle belly and the lowest intensity produces the strongest contraction. For pain applications, electrode placement relative to the nerve dermatome, the injury site, or acupuncture points (for certain protocols) changes the analgesic character of the treatment.
Anatomical library features on modern devices help bridge the gap between parameter knowledge and placement accuracy. The Intelect Legend 2 includes a detailed anatomical library accessible from its touchscreen, with visual guidance for both electrode and ultrasound applicator positioning. Suggested protocol settings built around current clinical practice reduce setup time and provide a defensible starting point for less experienced practitioners. That said, preset protocols are starting points, not rigid prescriptions, and clinical judgment should always override a default when patient presentation calls for it.
Pulse width and frequency interact in ways that novice users often underestimate. Wider pulse widths recruit more motor units because they exceed threshold in a larger population of nerve fibers, but they also increase charge delivery per pulse, which limits how long a patient can tolerate treatment. Frequency sets the rate of firing. Below about 30 Hz, individual muscle twitches remain distinct (unfused tetanus). Above 50 Hz, contractions fuse into a smooth sustained contraction. Understanding that axis, and knowing where Russian current (50 bursts per second), conventional NMES (typically 35-50 Hz), and low-frequency TENS (2-4 Hz for endorphin release) each sit on it, is foundational clinical knowledge for using an e-stim machine well.
Comparing Clinical E-Stim Machines
The table below covers the main units available through PPW's electrotherapy equipment range, with the specifications that matter most for clinical decision-making.
| Model | Channels | Ultrasound | Waveforms | Price |
|---|---|---|---|---|
 VitalStim Plus Dysphagia Electrotherapy & sEMG Biofeedback System |
Not published | No | Dysphagia-specific | $3,552.80 |
 Chattanooga Intelect Transport 2-Channel Electrotherapy Unit with mobile cart |
2 | No | 4 (IFC, Premod, High Volt, Russian) | $4,208.18 |
| Chattanooga Intelect Legend 2 2-Channel Electrotherapy & Ultrasound Combination System |
2 | 1 MHz & 3 MHz | 12 | $5,108.35 |
| Chattanooga Intelect Legend 2 4-Channel Electrotherapy & Ultrasound Combination System |
4 | 1 MHz & 3 MHz | 12 | $5,976.42 |
| Vectra Genisys 4-Channel Electrotherapy & Ultrasound Combination System with Cart |
4 | Yes, with laser option | Not published | $6,900.28 |
A few things stand out in this range. The Intelect Transport is the clear choice for practitioners who need portability above all else: battery operation, four built-in waveforms for the most common applications, and a mounting system that works across every clinical environment. The jump to the Legend 2 buys twelve waveforms, ultrasound at two frequencies, and the anatomical library. The four-channel Legend 2 adds multi-area coverage at a $868 premium over the two-channel version, which is easy to justify in a practice that regularly treats bilateral conditions or complex multi-site presentations. The Vectra Genisys sits at the top of the range and its modular design earns its price in practices that intend to expand their modality offering over time rather than immediately.
Specialized Applications: Dysphagia Treatment and sEMG Biofeedback
Not every e-stim machine is targeting musculoskeletal pain or orthopedic rehabilitation. The VitalStim Plus system is built specifically around dysphagia rehabilitation, using electrical stimulation to strengthen the swallowing musculature in patients with dysphagia secondary to stroke, neurological disease, or head and neck surgery. This is a fundamentally different clinical context: the target muscles are small, superficially positioned, and the treatment goal is functional motor re-education rather than pain relief or strength conditioning of a peripheral limb muscle.
The VitalStim Plus also integrates sEMG biofeedback, which records the actual electrical activity of the patient's swallowing muscles and displays it in real time. This combination of stimulation and biofeedback is powerful because the patient receives visual or auditory confirmation of volitional muscle activation, which accelerates motor learning. The same sEMG-plus-stimulation principle appears in the Vectra Genisys as an optional modality, making it applicable to dysphagia as well as the broader neurorehabilitation context. How VitalStim's electrode protocol differs from standard NMES electrode placement is a significant practical detail, given the anatomy of the anterior neck and the proximity of the laryngeal structures.
sEMG biofeedback without stimulation also has standalone applications in pelvic floor rehabilitation, TMJ dysfunction, and general muscle re-education programs. Clinics considering a modular platform like the Vectra Genisys should map their patient population before purchasing, since sEMG capability adds cost and the applicator must be purchased separately.
Safety, Contraindications, and Clinical Oversight
Electrical stimulation therapy carries a defined set of contraindications that every practitioner needs to apply before treatment, not just review during onboarding. Active implanted electronic devices, including cardiac pacemakers and spinal cord stimulators, are an absolute contraindication because externally applied current can interfere with device function. Stimulation over the anterior neck or carotid sinuses, transthoracically (across the chest), or transcranially outside of specific neurological protocols should not be performed with standard e-stim machines.
Other relative contraindications include active malignancy in the treatment field, over open wounds or broken skin without appropriate wound-care protocols, during pregnancy (particularly over the abdomen or lumbar region), and in patients with impaired sensation where the patient cannot reliably report excessive current. The last point matters clinically because intensity is typically titrated to patient tolerance, and that titration mechanism fails when sensation is unreliable.
Skin condition under and around the electrode site warrants assessment before each session. Standard self-adhesive electrodes can cause mild skin irritation with repeated use, particularly in patients with sensitive or fragile skin. Carbon-rubber electrodes with conductive gel spread current more evenly, which generally reduces the risk of localized skin reactions at high intensities. Most modern clinical devices provide current density displays or intensity limits to help prevent inadvertent burns, but these are safety assists, not substitutes for practitioner monitoring.
Choosing the Right E-Stim Machine for Your Practice
The most useful starting point is a list of the waveforms your practice actually uses. A clinic that routinely runs IFC, Russian current, and NMES protocols alongside therapeutic ultrasound has a compelling case for the Intelect Legend 2 or the Vectra Genisys. A mobile physiotherapist who primarily treats pain with conventional TENS and pre-modulated IFC will get excellent results from the Intelect Transport at a meaningfully lower price point, with the added benefit of battery operation and a form factor designed for bag-and-go use.
Patient volume is the second variable. If you routinely have multiple patients in treatment simultaneously, four-channel capability and multi-patient function become operationally significant. The Richmar TheraTouch CX4's documented support for up to three concurrent patients, and the four-channel Intelect Legend 2, both target this scenario. A solo practice seeing one patient at a time gains little from paying for that capability. Reviews of the Richmar and Chattanooga ranges in more depth, including how they perform across common clinical protocols, are worth reading before committing to either platform. The performance comparison across the Intelect lineup covers the tradeoffs between the Transport, the Legend 2, and the Primera in practical clinical terms.
Software upgradability is worth asking about before purchase. The Intelect Legend 2 supports software updates that can add waveforms and functionality after purchase, which extends the useful life of the device as evidence-based protocols evolve. That is a different ownership model from a fixed-firmware device, and for a capital purchase in the $4,000-$7,000 range, the ability to add clinical capability without buying new hardware matters. Those considering the modular Vectra platform will find a detailed breakdown of how each module integrates in the Vectra Genisys modular system review. For practices also exploring complementary recovery modalities, the cold therapy range pairs naturally with electrical stimulation in post-acute and sports rehabilitation protocols, and many clinics run both within the same treatment session.
More electrotherapy equipment worth a look
Chattanooga Intelect Legend 2 2-Channel Electrotherapy & Ultrasound Combination System
Chattanooga Intelect Transport 2-Channel Electrotherapy Unit with mobile cart
Frequently asked questions
Who is an e-stim machine actually designed for?▾
E-stim machines span a wide range of users, from licensed physical therapists managing post-surgical rehab to athletic trainers working on muscle conditioning. Most clinical-grade units, including those from Chattanooga, carry a note that they should be used under the prescription and supervision of a licensed medical practitioner, so they are not casual consumer devices. If you are considering one for a professional setting, the channel count, waveform library, and portability requirements will drive the decision more than any single feature.
Are there any conditions where e-stim should not be used?▾
Yes, and this is worth taking seriously. Electrical stimulation is generally contraindicated over pacemakers or implanted electronic devices, over the carotid sinus, during pregnancy (particularly over the abdomen or low back), and directly over areas with impaired sensation where the patient cannot report discomfort. The clinical units on this page are intended for supervised medical use, so a licensed practitioner should screen for contraindications before any treatment begins.
What does a clinical e-stim machine cost?▾
The units in this category sit in a professional price range. The Chattanooga Intelect Transport 2-Channel unit with cart is priced at $4,208.18, the Chattanooga Intelect Legend 2 2-Channel system comes in at $5,108.35, the 4-Channel Legend 2 at $5,976.42, and the Vectra Genisys 4-Channel combination system at $6,900.28. The gap between entry and top-tier largely reflects channel count, waveform variety, and whether the device integrates additional modalities like ultrasound or laser.
How difficult is it to set up a clinical e-stim machine for the first time?▾
Most modern units are designed with guided setup in mind. The Chattanooga Intelect Legend 2 uses a 7 in capacitive touch screen with built-in suggested protocol settings, an anatomical library for electrode placement, and real-time treatment progress feedback, so a trained clinician can get a session running without needing to manually calculate parameters from scratch. The Vectra Genisys uses an Electronic Signature system where applicators are automatically recognized when plugged in, which removes a common source of setup error in multi-modality devices.
What ongoing costs should a clinic expect after purchasing?▾
Electrode pads are the main consumable and need replacing regularly since adhesion degrades with use. If the device includes ultrasound, the coupling gel and eventually the applicator head are also recurring costs. On the software side, the Chattanooga Intelect Legend 2 offers free software upgrades, which reduces the long-term cost of keeping the unit current with clinical protocols. Battery packs, where used (the Intelect Transport supports battery operation with the pack sold separately), are an additional periodic replacement cost.
How do you maintain a clinical e-stim machine?▾
The lead cables and electrode connections are the most common failure points and should be inspected before each session for fraying or loose contacts. Ultrasound applicator heads on devices like the Vectra Genisys are waterproof for underwater treatments, but the cable connections still need to stay dry. Manufacturers typically provide cleaning guidelines for touchscreens and housings. Software updates on units like the Intelect Legend 2 should be applied as they become available, and applicator calibration should be checked on the schedule the manufacturer recommends.
How do you choose the right channel count for your practice?▾
A two-channel device handles the majority of single-patient sessions cleanly, running two electrode pairs with crossing current paths over one treatment area. The Chattanooga Intelect Transport is a practical two-channel option built around portability and single-practitioner use. A four-channel system like the Chattanooga Intelect Legend 2 4-Channel or the Vectra Genisys becomes worthwhile when you need to treat two separate areas in one session or when you are working with complex post-operative rehab where pain management and muscle re-education are happening at the same time across different sites.
What is the most common mistake clinicians make with e-stim parameters?▾
Applying the same waveform and frequency settings to every condition is probably the most common problem. A frequency that modulates pain through the gate-control mechanism, typically 80-150 Hz for conventional TENS, is not appropriate for a muscle re-education protocol that needs motor fiber recruitment. Similarly, using a Russian current protocol designed for fast-twitch conditioning on a patient who needs gentle sensory-level pain relief will cause unnecessary discomfort without added benefit. Devices like the Intelect Legend 2 include 12 distinct waveforms precisely because the required parameters vary significantly across applications, and treating those presets as interchangeable defeats the purpose of having them.
