Elbow, Ankle, and Hand CPM Machines: Less Common Applications Explained
Discover how elbow CPM machines restore joint mobility and accelerate recovery after surgery or injury.
Elbow, ankle, and hand CPM machines apply the same synovial fluid circulation and collagen-alignment principles as knee CPM, but their designs must match each joint's specific anatomy, particularly the elbow's dual-plane requirement for both flexion/extension and pronation/supination, and they are most often indicated after joint reconstruction, complex fracture repair, or prolonged immobilization.
- Elbow CPM machines that handle only flexion and extension are often enough, but cases involving the radial head or complex fracture-dislocations also need pronation and supination coverage.
- 24 to 48 hours, start early: For elbow fracture repair and arthroplasty, CPM is often initiated within 24 to 48 hours of surgery, because elbow stiffness becomes very hard to treat once capsular contracture sets in.
- A CPM device that covers only dorsiflexion and plantarflexion misses the inversion and eversion component, which contributes meaningfully to normal gait mechanics and sports function.
- Hand CPM earns its place in zone II flexor tendon repair because it moves the tendon through its sheath passively, reducing adhesion formation without loading the repair site.
- Before running any elbow CPM session, verify that the machine's mechanical hinge aligns with the patient's joint line, since even a few millimeters of offset creates shear forces and discomfort.
Where to start
OptiFlex ARTROMOT E2 Elbow CPM Machine
Kinetec Centura CEM Elbow CPM Machine
Why CPM Therapy Extends Well Beyond the Knee
Continuous passive motion is most closely associated with knee replacement rehabilitation, and that association is earned. But the underlying physiology that makes CPM effective at the knee applies equally to the elbow, ankle, and hand. Synovial fluid circulation, collagen alignment during early tissue repair, and the prevention of intra-articular adhesions are joint-nonspecific mechanisms. What differs is the anatomy, the required range of motion, the planes of movement, and the clinical scenarios that create the demand.
In clinical practice, elbow, ankle, and hand CPM machines tend to appear after joint reconstruction, complex fracture repair, burn contracture management, or prolonged immobilization. The evidence base for these less common applications is smaller than the knee literature, but the biomechanical rationale is solid and clinician experience with these devices is well established. The key is matching the machine's mechanical capabilities to the joint's anatomical requirements, which is where these devices differ substantially from one another.
How CPM Works at the Tissue Level
The therapeutic basis for continuous passive motion was formalized by Robert Salter's research in the 1970s and 1980s, which demonstrated that controlled, repetitive joint movement accelerates articular cartilage repair, reduces joint stiffness, and promotes organized collagen deposition compared to immobilization. The key phrase is passive: the machine moves the joint through a prescribed arc without requiring muscle contraction, which allows movement to occur even when active exercise would cause pain or risk displacing a repair.
In practical terms, CPM enhances synovial fluid distribution across articular cartilage surfaces, supplying nutrition to chondrocytes that lack direct vascular access. It also applies gentle tensile forces to healing soft tissue, which guides fibroblast orientation during the proliferative phase of repair. The result, when applied correctly, is tissue that heals with better extensibility and less scarring than tissue left immobilized during the same window.
One clinical reality that shapes CPM use at smaller joints is patient compliance. Passive motion is inherently more tolerable than active exercise in the first days post-surgery, and that tolerability translates to more consistent use. A machine running for several hours per day with minimal discomfort will often produce better early outcomes than an aggressive manual therapy program a patient cannot adhere to.

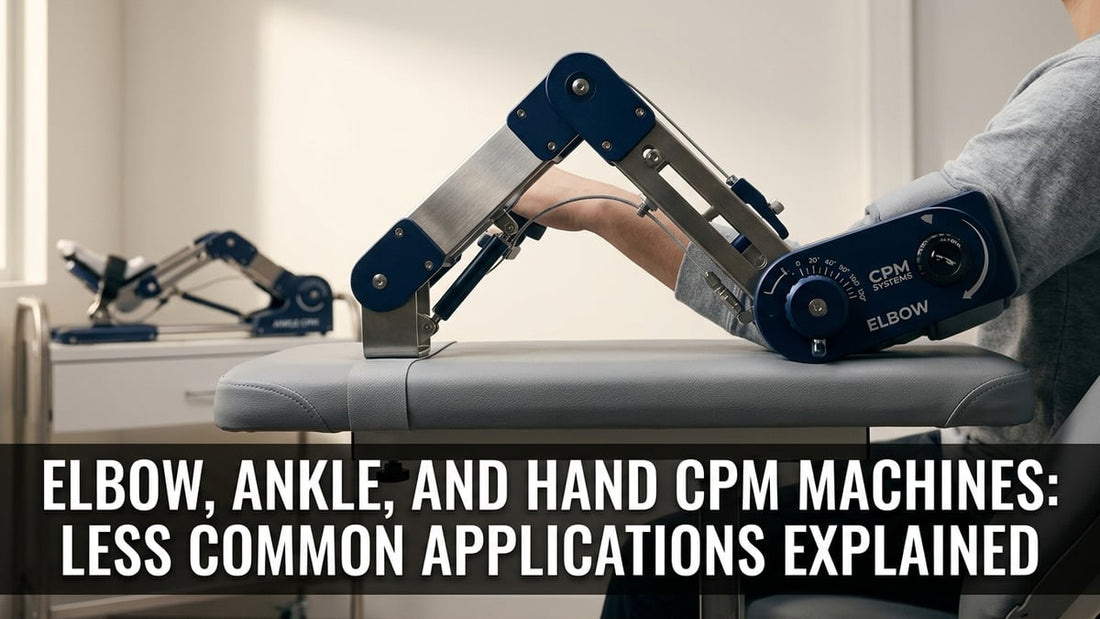

Elbow CPM Machines: Anatomy Drives Design
The elbow is a compound joint combining a hinge mechanism (humeroulnar) with a pivot (proximal radioulnar). Full functional use of the elbow requires both flexion/extension and forearm pronation/supination, and these motions occur in linked but mechanically distinct ways. An elbow CPM machine that addresses only flexion/extension handles the more common clinical need, but for post-operative cases involving the radial head, the distal biceps, or complex fracture-dislocations, the rotational plane matters considerably.
The OptiFlex ARTROMOT E2 is designed around this anatomical reality. Its fully synchronized dual-motor system drives both flexion/extension and pronation/supination simultaneously, producing what the manufacturer describes as true physiological movements. The machine allows treatment parameters to be customized through a hand control that stores therapy data on a memory chip card, which supports protocol continuity when a device moves between clinical settings or patient handoffs. At 35 lbs (16 kg), it is transportable without being cumbersome, a practical consideration when a patient transitions from inpatient to home use.
The Kinetec 6080 and the Kinetec Centura CEM take a different design approach, addressing flexion/extension in an abducted position with fixed or adjustable pronation/supination rather than fully synchronized rotational drive. Both deliver a range from 10 degrees of extension to 135 degrees of flexion, which covers the functional arc required for most post-surgical rehabilitation protocols. The Centura CEM also allows quick changeover from an existing shoulder pattern, which is useful in facilities that run multi-joint CPM programs and need to maximize equipment utilization.
Clinical Indications for Elbow CPM Therapy
The most common indication for an elbow CPM machine is post-surgical stiffness prevention following open reduction internal fixation (ORIF) of distal humerus or radial head fractures. Elbow stiffness is notoriously difficult to treat once established, and the joint's relatively tight capsular anatomy means that even a few weeks of immobilization can produce significant contracture. Early CPM use, often initiated within 24 to 48 hours of surgery when wound status permits, helps maintain joint excursion during the period when active exercise is contraindicated.
Total elbow arthroplasty is another strong indication. Post-arthroplasty patients are typically restricted from active elbow extension for several weeks to protect the triceps repair, making CPM a logical tool for maintaining flexion range and reducing capsular tightening during that protected period. Burn contracture across the antecubital fossa, elbow arthrofibrosis, and heterotopic ossification prevention following head injury are additional applications, though these require careful coordination with the managing physician given the complexity of the underlying conditions.
For outpatient or home use, CPM is typically prescribed for two to four hours per day in divided sessions, though individual protocols vary widely. The ability to store treatment data, as offered by the ARTROMOT E2's memory chip card system, is particularly valuable for home programs because it allows the treating clinician to review actual usage rather than relying on patient self-report.
Ankle CPM Machines: Managing a Multi-Plane Joint
The ankle presents a more complex mechanical problem than the elbow. True ankle motion involves the talocrural joint (dorsiflexion and plantarflexion) and the subtalar joint (inversion and eversion), and these motions are anatomically coupled. A CPM machine designed only for sagittal plane motion at the ankle addresses the primary arc but misses the rotational component that contributes to normal gait mechanics and sports function.
The OptiFlex Ankle CPM addresses this directly. Its design covers the full ankle range of motion across both planes: dorsiflexion/plantarflexion and inversion/eversion. Like the ARTROMOT E2, it uses adjustable motors to allow treatment parameters to be tailored to specific protocols, and the hand control stores data on a memory chip card. The unit features an adjustable base that accommodates use in bed or in a chair, and its patented universal left/right design means a single machine handles either limb without modification. At 24 lbs (11 kg), it is among the lighter devices in the OptiFlex line.
The base position adjustment matters more than it might seem. Post-operative patients often cannot tolerate prolonged supine positioning, and the ability to use the machine while seated allows longer daily treatment sessions. For patients managing edema, the seated position can be combined with elevation of the contralateral limb while the operative ankle is in motion, which is a small practical advantage but one that affects daily usability.
Ankle CPM Clinical Indications and Evidence
Total ankle replacement is the primary surgical indication driving ankle CPM use, a procedure that has grown steadily in volume as implant designs have improved and patient selection criteria have expanded. Post-arthroplasty protocols for the ankle have historically been more variable than knee protocols, partly because the evidence base is thinner and partly because ankle joint access is more surgically demanding, which affects how aggressively early mobilization can begin.
Complex ankle fractures, particularly those involving the tibial plafond (pilon fractures) or the posterior malleolus, are another indication. These injuries frequently result in stiffness, and given the ankle's functional importance for load transfer and gait symmetry, even modest gains in dorsiflexion range during rehabilitation have meaningful consequences for walking mechanics. Research on pilon fracture rehabilitation consistently identifies early controlled motion as beneficial for joint surface remodeling and functional outcomes.
Ankle CPM also appears in protocols for Achilles tendon repair, specifically in later-stage programs once the repair has achieved sufficient tensile strength and the surgeon has cleared passive dorsiflexion loading. In this context the machine provides controlled, incremental stretch to the healing tendon while preventing the aggressive force peaks that uncontrolled exercise might produce. Timing of CPM introduction in Achilles protocols varies considerably between surgeons and should be treated as protocol-specific rather than universal.
11 kg, suitable for both bed and chair use
16 kg, transportable for home program transition
10° extension to 135° flexion on both Kinetec elbow models
Hand and Wrist CPM Machines: The Smallest Scale
Hand and wrist CPM represents the most anatomically intricate application of this technology. The hand contains 27 bones and a complex arrangement of intrinsic and extrinsic musculature, and rehabilitation after hand surgery sits at the intersection of orthopedic, plastic, and reconstructive surgery. In this environment, CPM devices must deliver precise, controlled motion at very small joint amplitudes without applying forces that would stress tendon repairs, nerve coaptation sites, or small bone fixation.
The Kinetec Maestra Hand and Wrist CPM Machine is designed for this environment. Hand CPM machines differ from their larger counterparts in that the limb positioning and the force transmission system must accommodate the individual anatomy of each patient's hand, including finger length differences, the position of surgical incisions, and the tolerance of individual joints that may have significantly different end-range sensitivity. Programs for hand CPM typically run at lower forces and slower cycle rates than knee or elbow protocols.
The clinical scenarios driving hand CPM use include flexor and extensor tendon repair (particularly zone II flexor tendon repairs, which are technically demanding and prone to adhesion formation), metacarpophalangeal joint arthroplasty, Dupuytren's contracture release, and complex hand fractures managed with internal fixation. Wrist CPM is used post-arthroscopy, after distal radius fracture ORIF, and following wrist fusion or partial fusion procedures where adjacent joint mobility needs to be preserved.
Tendon Repair Rehabilitation and CPM: A Closer Look
Flexor tendon repair in zone II is one of the most demanding contexts in upper extremity rehabilitation. The flexor digitorum profundus and flexor digitorum superficialis travel through a narrow fibrosseous canal in the finger, and adhesion formation between the repaired tendon and its sheath is the primary cause of poor outcomes. Early controlled mobilization significantly reduces adhesion formation, and this is where hand CPM has a well-established role.
Controlled passive motion applied through a CPM device allows the tendon to glide within its sheath without requiring active muscle force across the repair site. Studies on early motion protocols for flexor tendon repair consistently show better total active motion outcomes compared to immobilization, and CPM-assisted protocols are one approach to delivering that motion in a controlled, repeatable format. The machine's advantage over purely manual passive mobilization is consistency: it delivers the same motion arc, at the same speed, for hours at a time, without the fatigue or technique variation that human-administered treatment involves.
Extensor tendon rehabilitation is less frequently managed with CPM but the same principles apply, particularly for zone VI and VII repairs where adhesion formation over the dorsum of the hand can limit flexion. In both flexor and extensor scenarios, the CPM prescription must be closely coordinated with the repairing surgeon because the timing, arc, and force parameters are not generic. They are specific to the repair technique, suture strength, and individual tissue quality.
Comparing the Elbow and Adjacent CPM Options
The three elbow CPM machines available through PPW occupy different positions in terms of capability and investment. Understanding where they differ practically helps clinicians and facilities match a device to their case mix without overspending on capabilities they will not use, or underbuying and limiting treatment options.
| Model | ROM (Elbow) | Pronation/Supination | Price |
|---|---|---|---|
| Kinetec Centura CEM Elbow CPM Machine |
10° ext to 135° flex | Fixed/adjustable | $3,825 |
 Kinetec Breva Ankle Continuous Passive Motion (CPM) Machine |
Ankle (DF/PF + Inv/Ev) | N/A | $7,375.50 |
 Kinetec 6080 Elbow Continuous Passive Motion (CPM) Machine |
10° ext to 135° flex | Fixed/adjustable | $7,645.50 |
 Kinetec Centura Bed/Wheelchair Shoulder CPM Machine |
Shoulder (abduction plane) | N/A | $7,555.50 |
 Kinetec Maestra Hand and Wrist CPM Machine |
Hand/wrist | N/A | $7,735.50 |
| OptiFlex ARTROMOT E2 Elbow CPM Machine |
Full flex/ext + P/S | Synchronized dual-motor | $10,237.08 |
The Kinetec Centura CEM is the most accessible entry point for elbow CPM, appropriate for facilities treating standard post-fracture or post-arthroplasty cases where the primary need is controlled flexion/extension. The Kinetec 6080 occupies a mid-tier position with the same range of motion parameters; clinicians should verify directly with the manufacturer what differentiates the 6080 from the Centura CEM at the feature level, as OptiFlex does not publish a detailed feature comparison between the two in its publicly available documentation. The ARTROMOT E2 is the choice where synchronized rotational drive is clinically indicated, particularly for radial head pathology or cases where forearm rotation is a documented limitation. The premium reflects the dual-motor engineering rather than any difference in the quality of the flexion/extension mechanism itself.
For facilities considering both elbow and shoulder CPM, the Centura CEM's quick-changeover design from an existing shoulder pattern is a meaningful operational advantage. That single-platform approach reduces capital expenditure if both joint programs are running simultaneously. If you are building or expanding a CPM inventory, it is worth reviewing how Kinetec and OptiFlex differ in their engineering philosophies before committing to one ecosystem across multiple joint types.
Selecting the Right CPM Device for Your Clinical Setting
The decision framework for an elbow CPM machine, an ankle CPM, or a hand CPM device should start with the clinical population being served rather than the device specifications. A sports medicine clinic managing a moderate volume of ankle arthroplasty and pilon fracture cases has different requirements than a hand surgery center where zone II tendon repairs are a weekly occurrence. Volume, case mix, and the acuity of the typical patient all shape which device earns its place in a program.
Portability is a legitimate consideration, particularly for programs that transition patients from inpatient to home. Both the ARTROMOT E2 at 35 lbs and the OptiFlex Ankle at 24 lbs are explicitly designed with transport in mind, and the ability to continue CPM at home during the first two to four weeks post-operatively can meaningfully extend the duration and consistency of treatment. Home program compliance is consistently identified in rehabilitation research as one of the stronger predictors of functional outcome, and a device that travels with the patient removes one structural barrier to adherence.
Data management is an underappreciated feature in smaller joints. At the knee, therapists often have more frequent direct contact with patients during the acute phase, making oversight manageable. At the elbow and hand, where home use is common earlier in the recovery timeline, the memory card systems used by OptiFlex devices provide a record of actual treatment time and settings that supports genuinely informed clinical decisions rather than relying on patient recall.
The full range of CPM machines available through PPW covers knee, elbow, ankle, shoulder, and hand applications, which is useful context for facilities planning a multi-joint program. If edema management or soft tissue recovery is also part of the patient pathway, cold compression devices are a natural complement to CPM in the immediate post-operative phase, addressing the swelling that limits early joint excursion before the CPM program can fully take effect.
Practical Setup and Protocol Guidance for Smaller Joints
Setting up an elbow CPM machine correctly requires attention to the axis of rotation alignment between the machine's mechanical hinge and the patient's elbow joint line. Misalignment, even by a few millimeters, produces shear forces that cause discomfort and can compromise the repair being protected. Most elbow CPM devices provide forearm length adjustment to accommodate different patient anatomies, and this adjustment should be verified in both terminal flexion and extension before running the first session.
For ankle CPM, foot plate sizing and the relative position of the subtalar axis deserve attention. The ankle's axis of inversion/eversion does not align with the sagittal plane, which means machines addressing both planes must account for the anatomical obliquity of the subtalar joint. The OptiFlex Ankle's universal left/right design handles this through its mechanical configuration, but clinicians should still confirm that the device is correctly oriented for the limb being treated before initiating the rotational component.
Confirm the surgical clearance and target arc
Before touching the machine, have written documentation of the approved range of motion in degrees. At the elbow and hand especially, the target arc at day three may be substantially narrower than the device's mechanical capability, and the machine must be programmed to stay within surgeon-specified limits.
Fit and align the device to the patient
