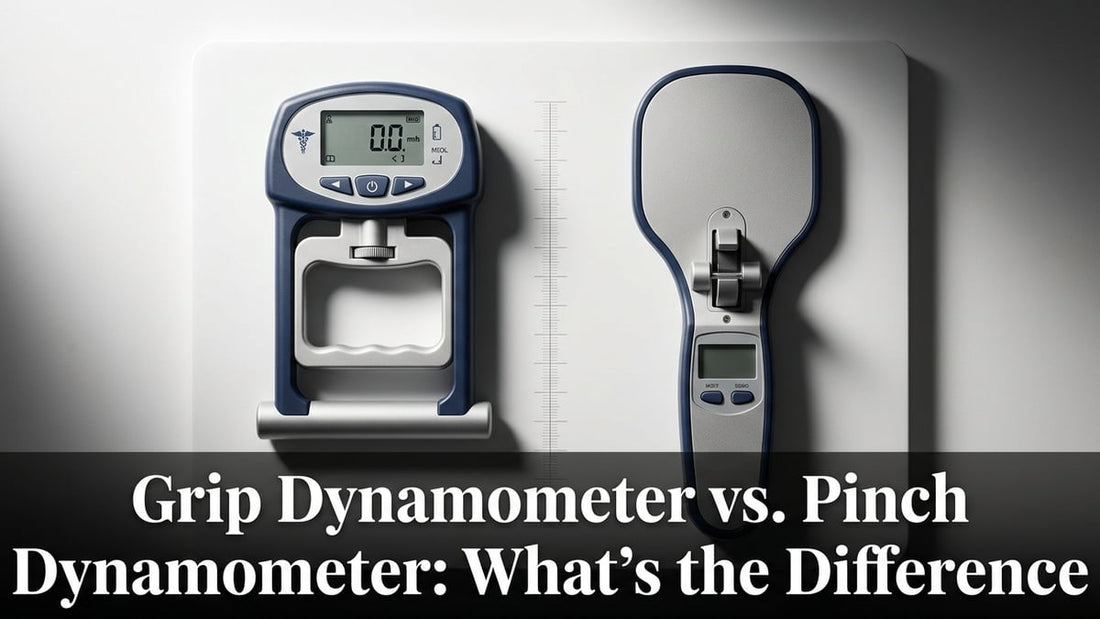

Grip Dynamometer vs. Pinch Dynamometer: What's the Difference
Discover how these two essential hand-strength tools differ and which one best measures your unique rehabilitation or performance needs.
A grip dynamometer measures whole-hand power grip force generated by the finger flexors and intrinsic hand muscles, while a pinch dynamometer measures the compressive force between the thumb and one or more fingers in lateral, three-jaw chuck, or tip-to-tip configurations. The two devices capture different neuromuscular tasks, use separate normative databases, and are not interchangeable clinically.
- Different muscles, different tests: Power grip and pinch strength draw on different muscle groups, decline differently with age, and need separate devices to capture both accurately.
- Five-position handle protocol: The standard five-position protocol produces a force curve that peaks at positions two and three, which is what distinguishes a real grip assessment from a single squeeze.
- Three pinch configurations: Pinch testing covers lateral, three-jaw chuck, and tip-to-tip patterns, and lateral pinch is the configuration most sensitive to early functional loss.
- If budget allows only one device initially, start with a grip dynamometer, since it has the broader normative database and applies well beyond hand therapy to general orthopedic and geriatric screening.
- ICC above 0.90, with rest intervals: Digital grip dynamometers reliably hit an intraclass correlation above 0.90, but only when the examiner uses standardized positioning and allows rest between the three trials.
Where to start
MicroFET HandGRIP Digital Grip Dynamometer with Clinic and Data Software
ErgoFET500 Digital Push/Pull Dynamometer with Data Collection Software
What Each Device Actually Measures
A grip dynamometer measures the maximum isometric force generated by the finger flexors, thumb, and the intrinsic muscles of the hand working together in a power grip. A pinch dynamometer measures the compressive force between the thumb and one or more fingers in a precision or lateral pinch pattern. Both produce an objective force value in kilograms or pounds, but they are capturing fundamentally different neuromuscular tasks.
The distinction matters clinically because power grip and pinch strength draw on different muscle groups, are affected differently by pathology, and decline at different rates with age or disuse. A patient recovering from a distal radius fracture may regain gross grip strength well before their lateral pinch normalizes, or vice versa, depending on which structures were involved. Treating both scores as interchangeable leads to incomplete discharge decisions.
Normative databases for grip and pinch are also kept separate in the literature. Mathiowetz and colleagues established widely cited grip norms using a Jamar-style handle, while pinch norms were derived from three distinct grip configurations. Using a grip dynamometer result to interpret a pinch-norm table, or the reverse, produces meaningless comparisons and can mislead return-to-work decisions.
Grip Dynamometer: Design and Mechanics
A traditional grip dynamometer is a hydraulic or digital load cell encased in a handle the patient squeezes with their whole hand. Digital units, like the MicroFET HandGRIP, use a strain-gauge load cell and convert the mechanical deflection into a digital signal, removing the calibration drift that hydraulic gauges develop over time. The MicroFET HandGRIP runs on a 3.7-volt rechargeable lithium-ion battery and includes an AC adapter, so you are not replacing alkaline cells mid-clinic.
Handle position matters. The standard five-position protocol moves the handle through five successive widths, and the resulting force curve (highest in positions two and three, declining toward the extremes) serves as both a validity screen and a fatigue measure. The MicroFET HandGRIP supports four distinct test protocols: maximum grip, five-position, rapid exchange, and fatigue testing. That breadth covers most of what occupational therapists and hand surgeons want documented without requiring a separate device for each task.
The Lafayette DualGrip takes a slightly different ergonomic approach, with a handle designed to accommodate both large and small hands without swapping components. That is a practical consideration in high-throughput settings where clinicians are seeing pediatric and adult patients in the same session. Both the Lafayette and MicroFET units use rechargeable lithium-ion power, which has become the sensible standard given how often these devices travel between exam rooms or off-site job sites.
Pinch Dynamometer: Design and Mechanics
A pinch dynamometer is a flat, paddle-shaped gauge held between the thumb and finger rather than enclosed in the palm. Because the applied force is much lower than in a power grip, the load cell is calibrated for a narrower, more sensitive range. Most pinch units measure three configurations: lateral (key) pinch, where the thumb pad presses against the lateral surface of the index finger; three-jaw chuck (palmar) pinch; and tip-to-tip pinch. Each configuration loads the thenar musculature and the intrinsic hand muscles differently.
Lateral pinch is particularly relevant for tasks like turning a key or holding a card, and research consistently shows it is the configuration most sensitive to early median nerve compromise. Three-jaw chuck pinch correlates more closely with fine manipulation tasks. Clinicians working in neurology or hand therapy tend to test all three and document them separately rather than averaging them, because the pattern of which configurations are affected can help localize the lesion.
From a hardware standpoint, pinch dynamometers are smaller and lighter than grip units, which makes them easier to position correctly on a patient with limited range of motion or significant pain. The tradeoff is that they require more precise placement to get a valid reading. A thumb that contacts the gauge at an angle rather than pad-to-pad underestimates true pinch force, so clinician technique is a bigger variable with pinch testing than it is with power grip.
Clinical Applications: Where Each Test Belongs
Grip strength testing has strong evidence as a general health marker beyond the hand itself. Several large longitudinal studies have linked low grip strength to increased all-cause mortality, cardiovascular risk, and frailty outcomes in older adults. This gives the grip dynamometer a role that extends into geriatric medicine, primary care screening, and sports performance monitoring, well outside hand rehabilitation specifically. Occupational health applications are equally well established: the ErgoFET500, for instance, is explicitly designed for NIOSH whole-body or job-specific static strength testing on job sites, where grip is one component of a broader ergonomic assessment.
Pinch testing is more narrowly targeted. It is most commonly ordered in hand therapy following carpal tunnel release, trigger finger repair, thumb arthritis (CMC arthroplasty), or replantation procedures. It is also a standard part of cumulative trauma disorder assessments in occupational medicine. Pinch norms exist by age and sex but are less commonly used as a systemic health proxy, in part because pinch strength is more dependent on local joint integrity than on global muscle mass.
For sports medicine practitioners, grip testing is the primary tool: catching, throwing, racket sports, and climbing all rely on power grip endurance. Pinch testing becomes relevant in sports with high thumb-loading demands, including wrestling, gymnastics, and some racket sports, but it is rarely the first measurement ordered. Understanding how isometric force testing integrates into a full manual muscle evaluation helps clarify when pinch adds information that grip alone cannot provide.
Software and Data Collection: What You Actually Get
The data output from a modern digital grip dynamometer is considerably richer than a peak-force number. The MicroFET HandGRIP ships in three software configurations. The data-collection-only version ($1,032) records raw test data and displays a real-time graph during testing, saving output in CSV format for import into spreadsheet programs. That is a clean, low-friction option for research settings or practitioners who already have an EMR and just need exportable numbers.
The clinic software version ($1,032) takes a different approach: it provides structured muscle testing and spinal range-of-motion protocols with patient tracking, comparative statistics across visits, and narrative and graphic reports. This is the version that makes sense in a busy outpatient hand therapy practice, where generating a progress note or an insurance justification letter from the same platform that captured the test saves meaningful time. The combined version ($1,517) includes both packages, which is the right choice for a clinic that does both patient care and research.
The ErgoFET500 ($2,255.40) approaches data differently, designed primarily for the ergonomics and industrial context. It captures peak force and a timed three-second average, which is the metric NIOSH protocols often specify. It connects wirelessly, which eliminates cable management on a factory floor, and its data collection software follows the same CSV export structure, so results can be analyzed alongside other ergonomic measurements without reformatting. Understanding what drives the price difference between entry-level and full-featured dynamometers helps explain why these bundles are structured the way they are.
MicroFET HandGRIP supports maximum, 5-position, rapid exchange, and fatigue protocols
Lateral, three-jaw chuck, and tip-to-tip pinch each load the hand differently
Both MicroFET and ErgoFET500 save raw data in comma-separated values for spreadsheet analysis
Comparing Grip Dynamometers Across the Range
The table below covers the primary grip dynamometers available, ranging from entry-level digital units to fully featured clinical systems. Pinch dynamometers are separate devices and are not included here. The MicroFET HandGRIP appears in three rows because the hardware is identical across versions; what differs is the software bundle and therefore the price and clinical utility.
| Model | Price | Test Modes | Software Included |
|---|---|---|---|
 Activebody ActivForce 2 Digital Dynamometer & Inclinometer |
$500 | Not published | Not published |
 Kinvent K-Grip Digital Hand Dynamometer |
$590 | Not published | Not published |
 Lafayette DualGrip Digital Dynamometer |
$805 | Not published | Not published |
 MicroFET HandGRIP Digital Grip Dynamometer with Clinic Software |
$1,032 | Maximum, 5-position, rapid exchange, fatigue | Clinic software |
 MicroFET HandGRIP Digital Grip Dynamometer with Data Collection Software |
$1,032 | Maximum, 5-position, rapid exchange, fatigue | Data collection (CSV) |
| MicroFET HandGRIP Digital Grip Dynamometer with Clinic and Data Software |
$1,517 | Maximum, 5-position, rapid exchange, fatigue | Clinic and data collection |
The jump from $590 to $1,032 is largely explained by software. The hardware inside digital grip dynamometers at this tier is broadly comparable: strain-gauge load cells, rechargeable lithium-ion batteries, and similar force ranges. What the MicroFET units add at the higher price point is structured clinical workflow, patient tracking, and report generation that the simpler units do not offer. For a solo practitioner who documents everything in a separate EMR, the lower-cost units may be perfectly sufficient. For a practice that needs to generate defensible progress reports quickly, the clinic software pays for itself.
Choosing Between Grip and Pinch Testing: A Practical Framework
Most hand therapy practices need both. They serve different normative comparisons, document different functional deficits, and justify different intervention goals. The question is usually not which device to buy but which to prioritize if a budget allows only one at first. Grip testing has the broader evidence base, broader screening applications, and larger normative populations, so if the practice sees general orthopedic or sports medicine patients alongside hand therapy cases, a grip dynamometer is the starting point.
Pinch testing becomes essential when the caseload includes post-surgical hand patients, occupational medicine cases with cumulative trauma claims, or neurological patients with suspected intrinsic hand weakness. A comprehensive grip dynamometer like the MicroFET HandGRIP can document the power grip side thoroughly across all four protocols, while a dedicated pinch dynamometer handles the precision grip assessment. Running the full strength assessment battery alongside other measurement tools gives a much clearer functional picture than any single device can.
Ergonomics and industrial health applications tend to prioritize grip, since power grip is the dominant hand posture in most manufacturing, assembly, and material-handling tasks. The ErgoFET500 was designed specifically for that context: it works equally well as a push/pull gauge and as a grip strength tool, which is why it includes multiple handle configurations. For practitioners working across clinical and occupational settings, browsing the full range of dynamometers available shows how varied the device categories have become.
Where the MicroFET HandGRIP Fits in the Broader MicroFET Lineup
MicroFET produces a range of digital dynamometers, and the HandGRIP is specifically engineered for hand strength assessment rather than general muscle testing. The MicroFET2 and MicroFET3 are handheld dynamometers used by a clinician to resist patient effort across a wide range of joints and muscle groups. The HandGRIP, by contrast, is a self-administered squeeze device: the patient holds it and squeezes, making it better suited to grip-specific protocols. Understanding the differences across that lineup matters when configuring a practice, because the devices are not interchangeable despite sharing a brand and a software ecosystem. A detailed look at how the MicroFET HandGRIP compares to the HandPINCH and the other MicroFET models clarifies which device covers which clinical need.
The HandPINCH is MicroFET's dedicated pinch dynamometer, built around the same platform as the HandGRIP but with a geometry and calibration suited to pinch force ranges. Practices that want standardized software, battery compatibility, and a consistent reporting format across grip and pinch testing will find that pairing the two MicroFET units within the same software ecosystem reduces administrative friction. That integration is part of what pushes practitioners toward the combined clinic-and-data-software version rather than buying the cheaper software variants and patching them together later.
For practitioners who want to extend assessment beyond grip and pinch into a full upper-extremity or whole-body strength profile, the Kinvent packs are worth examining. The Kinvent Starter Pack includes a K-Grip dynamometer alongside a push dynamometer, pull dynamometer, goniometer, and pressure dynamometer, all integrated into a single connected platform. For practices building an assessment system from scratch, that kind of bundled approach can be more economical than assembling individual devices. The Kinvent pack lineup spans several configurations depending on how much of the assessment chain a practice wants to automate. Practitioners who lean heavily on the MicroFET ecosystem for grip testing sometimes find it useful to cross-reference with the MicroFET collection to confirm which software licenses apply to which hardware combinations before ordering.
Validity, Reliability, and What the Research Shows
Digital grip dynamometers have well-established test-retest reliability when standardized positioning is used. Research consistently supports an intraclass correlation coefficient above 0.90 for grip strength in healthy adults when the examiner follows a defined protocol, including seated position, elbow at 90 degrees, forearm in neutral rotation, and three trials with a rest interval between them. Deviations from positioning or allowing fatigue to accumulate across trials without rest are the most common sources of measurement error in clinical practice.
Pinch dynamometry shows slightly lower reliability coefficients in the literature, partly because the smaller force ranges amplify positional variability and partly because the three configurations differ in how sensitive they are to thumb arthropathy or median nerve compromise. Lateral pinch tends to show the highest reliability of the three; tip-to-tip is the most variable. The practical implication is that pinch testing requires more attention to standardized hand placement and should use more trials or a mean-of-three approach rather than peak-force-only recording when high precision is needed.
The rapid exchange grip test, one of the four protocols on the MicroFET HandGRIP, was developed as a validity screen to help identify submaximal effort. The premise is that a patient performing at true maximum will show a characteristic pattern in rapid alternating trials, while someone deliberately underperforming produces a flatter curve. That said, the research on rapid exchange as a validity indicator is mixed, and most practitioners now use the coefficient of variation across the five-position protocol as a more defensible metric. Having both options built into the same device gives clinicians flexibility to apply the protocol most appropriate for their setting and documentation requirements.
More dynamometers worth a look
MicroFET HandGRIP Digital Grip Dynamometer with Data Collection Software
MicroFET HandGRIP Digital Grip Dynamometer with Clinic Software
Frequently asked questions
What is the actual difference between a grip dynamometer and a pinch dynamometer?▾
A grip dynamometer measures the maximum isometric force of your whole hand working together in a power grip, driven by the finger flexors, thumb, and intrinsic hand muscles. A pinch dynamometer measures compressive force between the thumb and one or more fingers in configurations like lateral pinch, three-jaw chuck, or tip-to-tip. They capture different neuromuscular tasks, so a strong score on one tells you nothing reliable about the other.
Who actually needs both types of dynamometer, and who can get by with just one?▾
Hand therapists and occupational therapists treating post-surgical patients typically need both, because conditions like carpal tunnel release or CMC arthroplasty affect pinch and grip differently and require separate documentation. Clinicians focused on geriatric screening, primary care, sports medicine, or ergonomic assessments can generally work with a grip dynamometer alone, since power grip is the measurement tied to broader health outcomes like frailty and cardiovascular risk. If your caseload is exclusively hand rehab, budget for both from the start.
Is it safe to use these devices with patients who have acute injuries or post-surgical hands?▾
Both devices are passive measurement tools, so the risk lies in patient effort rather than the equipment itself. For post-surgical patients, you should follow the referring surgeon's protocol on when strength testing is cleared, since premature maximal effort can stress repairs. With pinch testing in particular, correct pad-to-pad thumb placement is important because an angled contact underestimates force and may cause the patient to compensate in ways that stress adjacent structures.
What do these devices cost, and what drives the price difference?▾
Entry-level digital grip dynamometers start around $1,032, which is the price of the MicroFET HandGRIP with either clinic software or data collection software included. The version bundled with both clinic and data collection software runs $1,517. The price difference between models generally comes down to software capability, whether patient tracking and report generation are built in, and whether the unit supports multiple test protocols like the MicroFET's four modes: maximum, five-position, rapid exchange, and fatigue.
How difficult is the setup, and what do you get in the box?▾
Digital grip dynamometers like the MicroFET HandGRIP come ready to use out of the box with a carrying case, a 3.7-volt rechargeable lithium-ion battery, and an AC adapter. Software packages are included depending on the model you choose, so there is no separate installation purchase needed for the version that bundles both. Pinch dynamometers are simpler devices mechanically, but correct clinical setup depends on clinician technique, particularly ensuring the patient contacts the gauge pad-to-pad rather than at an angle.
What does ongoing maintenance look like for a digital grip dynamometer?▾
The main advantage of digital load-cell units over traditional hydraulic ones is that they do not develop calibration drift over time, which means you avoid the periodic recalibration overhead that hydraulic gauges require. Battery maintenance is straightforward since the MicroFET HandGRIP uses a rechargeable lithium-ion cell rather than disposables. Keeping the device in its included case when not in use and following the manufacturer's cleaning guidelines for high-contact clinical equipment covers most of what routine maintenance involves.
How do you choose the right handle size or configuration for different patients?▾
For grip dynamometers, handle position is the key variable. The standard five-position protocol steps through five successive widths, and the resulting force curve peaking at positions two and three is both a validity check and a fatigue measure. The MicroFET HandGRIP supports all five positions within a single testing session. If your clinic sees a wide range of patient sizes, including pediatric and adult populations, a handle that accommodates different hand sizes without swapping components is a practical consideration worth factoring into your purchase decision.
What is the most common mistake clinicians make when using these devices?▾
With grip dynamometers, the most common error is failing to record which handle position was used at baseline. If a follow-up test is performed at a different position, the two numbers are not comparable regardless of what the load cell reads. With pinch dynamometers, the recurring problem is angled thumb contact, where the thumb hits the gauge off-center rather than pad-to-pad, which underestimates true force and introduces clinician technique as a major variable. Standardizing your protocol and documenting it in the patient record fixes both issues.
