How Ultrasound Therapy Works: Mechanism and What It Treats
Sound waves penetrate deep into tissue to reduce pain, speed healing, and treat conditions from joint stiffness to muscle injuries.
Ultrasound therapy devices deliver high-frequency sound waves at 1 MHz or 3 MHz into soft tissue, producing either thermal effects through continuous molecular oscillation or non-thermal cavitation effects through pulsed mode. Clinically it treats soft tissue injuries, adhesive capsulitis, bursitis, myositis, muscle spasm, scar tissue, and chronic pain under licensed medical supervision.
- Therapeutic ultrasound works through two separate pathways: a thermal effect from continuous wave delivery and a non-thermal mechanical effect, and most clinical protocols rely on both.
- Lateral epicondylalgia, plantar fasciitis, rotator cuff tendinopathy, and Achilles pathology have the most consistent controlled trial support, while claims around fracture healing have proven harder to reproduce.
- 1 MHz deep, 3 MHz superficial: Frequency choice is the first protocol decision: 1 MHz penetrates deep tissue while 3 MHz concentrates energy in superficial structures, so getting this wrong undermines everything else.
- For practices with rotating staff or standardised protocols, a device that stores 15 to 20 user-defined presets removes a meaningful source of treatment inconsistency between sessions.
- Combination unit or standalone: If you routinely apply ultrasound and electrotherapy in the same appointment, a combination unit is almost always more practical than managing two separate devices mid-session.
Where to start
Chattanooga Intelect Transport 2 Electrotherapy & Ultrasound Combination System
Vectra Genisys 4-Channel Electrotherapy & Ultrasound Combination System with Cart
What Ultrasound Therapy Actually Does to Tissue

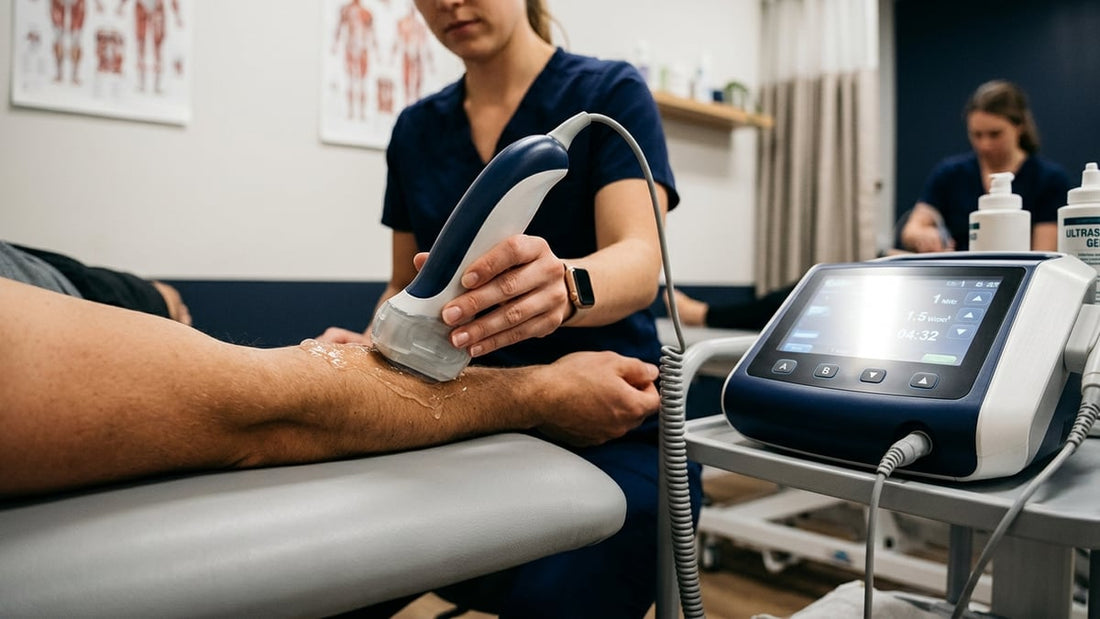

Therapeutic ultrasound uses high-frequency sound waves, typically 1 MHz or 3 MHz, to deliver energy into soft tissue. Unlike diagnostic imaging, which pulses at very high frequencies and reads the returning echo, a therapeutic ultrasound device is designed to deposit that energy and produce a biological effect rather than a picture.
The mechanism splits into two pathways. The first is thermal: continuous ultrasound causes rapid oscillation of tissue molecules, generating friction and raising local tissue temperature. A 1 to 4 degree Celsius rise in collagen-rich structures increases tissue extensibility, accelerates enzyme activity, and promotes blood flow. The second pathway is non-thermal, sometimes called cavitation and acoustic streaming. Here, microsecond pressure fluctuations cause gas-filled microbubbles to form and oscillate in the interstitial fluid. This mechanical agitation alters cell membrane permeability, stimulates fibroblast activity, and promotes the release of growth factors, all without meaningfully raising temperature. Pulsed mode exploits this non-thermal pathway almost exclusively, which is why it is chosen for acute or sub-acute presentations where heating would be counterproductive.
The choice between 1 MHz and 3 MHz is not arbitrary. At 1 MHz, the beam penetrates to approximately 4 to 5 centimetres, making it appropriate for larger muscle bellies, the hip capsule, or deep ligaments. At 3 MHz, energy is absorbed in the first 1 to 2 centimetres, which suits superficial tendons, small joint capsules, and scar tissue close to the skin. Most clinical devices carry both frequencies, and selecting correctly matters more than almost any other parameter you will set during a session.
Conditions That Respond to Ultrasound Therapy
The evidence base for therapeutic ultrasound is broad but uneven, which is worth stating plainly. Research consistently supports its use in several specific presentations, while some early claims about fracture healing and wound repair have proven less reproducible at clinically available intensities. Knowing where the evidence is strong helps practitioners apply the modality with more confidence and avoid overselling it to patients.
Soft tissue injuries are the strongest indication. Lateral epicondylalgia, plantar fasciitis, rotator cuff tendinopathy, and Achilles pathology all have controlled trial data supporting ultrasound as part of a multimodal programme. The proposed mechanism involves upregulation of collagen synthesis and improved alignment of regenerating fibres, effects consistent with what acoustic streaming does to fibroblast activity at the cellular level. Adhesive capsulitis responds particularly well, likely because heating the dense, contracted inferior capsule improves tissue extensibility before stretching; this is reflected in the clinical protocols built into several devices in this category.
Bursitis, myositis, and shortened tendons or scar tissue from prior injury are also listed clinical applications, and these align with the thermal pathway. Raising temperature in a contracted or fibrotic structure before manual work or exercise is a logical use of the modality, essentially using the device to do what a clinician cannot achieve efficiently through surface heat alone. Muscle spasm relief is another documented effect, probably mediated through the combined influence of local warming and altered nerve conduction thresholds.
Chronic pain presentations benefit from both pathways operating together. Regular treatment cycles appear to modulate pain processing at the tissue level, though exactly how much of this is mechanical and how much is thermal remains debated. For sub-chronic and chronic conditions, continuous mode at moderate intensities is generally preferred. For acute presentations, pulsed mode reduces thermal load while preserving the mechanical effects thought to assist early-phase tissue repair.
The Key Parameters Every Practitioner Sets
An ultrasound therapy device is only as good as the protocol driving it. Four parameters define every treatment: frequency, intensity, duty cycle, and treatment duration. Understanding how they interact is what separates a well-designed session from one that happens to use the right equipment.
Frequency
As described above, 1 MHz reaches deep tissue and 3 MHz targets superficial structures. Some devices, including the Chattanooga Intelect Transport 2, offer 1 MHz and 3.3 MHz rather than the more common 1 MHz and 3 MHz pairing. The practical clinical difference between 3 MHz and 3.3 MHz is small, but it is worth noting when comparing specifications.
Intensity (W/cm²)
Intensity is expressed in watts per square centimetre of the soundhead's effective radiating area. For thermal effects, intensities of 1.0 to 2.0 W/cm² are typical. For non-thermal, pulsed treatment, intensities from 0.5 to 1.5 W/cm² are common, with the duty cycle doing more work than the raw intensity figure. Going higher than the tissue needs produces heat without additional therapeutic benefit and increases the risk of periosteal pain over bony prominences.
Duty Cycle and Mode
Continuous mode delivers 100% of the set intensity across the full treatment time. Pulsed mode cycles the output on and off, usually expressed as a ratio such as 20% (2 ms on, 8 ms off). The off periods allow tissue to dissipate heat, so average intensity drops considerably even if the peak is identical to continuous mode. Most clinical protocols for acute and sub-acute conditions specify pulsed mode at 20% to 50% duty cycles.
Treatment Duration and Soundhead Movement
Treatment area determines duration more reliably than a fixed time. A commonly used approach is to treat 1.5 to 2 times the effective radiating area of the soundhead per minute. A 5 cm² head covering a 10 cm² area would therefore require approximately 5 to 7 minutes. The soundhead should remain in constant, overlapping circular motion. Stationary application concentrates energy and creates standing waves that can cause periosteal discomfort.
Soundhead Size, Coupling, and Why Both Matter
The effective radiating area of the soundhead determines how much tissue you can treat efficiently per pass. Smaller heads (1 cm²) concentrate energy into tight areas like the first metatarsal or a small joint, while larger heads (5 cm², 10 cm²) are more appropriate for the rotator cuff, hamstring origin, or lumbar paraspinals. Several devices in this category include more than one head size precisely because no single size works optimally across all clinical presentations.
The Chattanooga Intelect Transport 2 ships with transmitters in 2 cm², 5 cm², and 10 cm² sizes, each with an LED coupling indicator. That indicator is a practical feature: ultrasound is essentially inert if the coupling between head and skin is poor, and the LED alerts the clinician when the acoustic contact drops below an effective threshold, removing one of the more common sources of treatment variability. The Richmar SoundCare Plus takes a different approach, including 1 cm² and 5 cm² heads that can both be connected simultaneously, which suits practices that treat very different body sites back to back without wanting to reconfigure the setup between patients.
Coupling medium is the other side of this equation. Ultrasound gel remains the standard because it transmits acoustic energy with minimal attenuation. Water-based gels are generally preferred over oil-based media, which can attenuate the beam. For irregular surfaces or areas that are difficult to maintain gel contact, underwater application is a valid alternative, and several applicators in this category are explicitly rated as waterproof to support that technique.
Combination Units Versus Standalone: How to Think About It
Many practitioners working in physical therapy or sports medicine need both ultrasound and electrotherapy on a daily basis. A standalone ultrasound device is straightforward and often less expensive, but a combination unit consolidates two workflows into one piece of equipment that does not require switching between machines mid-session. Whether a combined or dedicated device makes more clinical sense depends on caseload and how often the two modalities are used on the same patient in the same appointment.
The devices available as therapeutic ultrasound machines at Peak Primal Wellness range from straightforward standalone ultrasound systems to modular platforms that consolidate six modalities. The Vectra Genisys is a clear example of the modular approach: its base system handles ultrasound, electrotherapy, and combination therapy, but the same platform can be expanded later to include laser, sEMG, and sEMG with stimulation. For a clinic that expects its treatment repertoire to grow, that architecture avoids the cost of replacing equipment each time a new modality is added.
The Chattanooga Intelect Legend 2 line takes a more prescribed approach. Both the two-channel and four-channel versions ship with 12 electrotherapy waveforms, 1 MHz and 3 MHz ultrasound, and an extensive anatomical library on a 7-inch capacitive touchscreen. The built-in protocol suggestions are developed around current clinical practices, which is practical for a busy clinic where multiple practitioners might use the unit without always consulting reference material first. Understanding how ultrasound and electrotherapy complement each other is the underlying question those protocols are trying to answer for the user at the point of treatment.
Comparing the Main Devices in This Category
The table below covers the four-to-six units most relevant to a clinical purchasing decision. Specifications are drawn from manufacturer documentation; where a figure was not published, that is noted rather than estimated.
| Model | Channels | US Frequencies | Price |
|---|---|---|---|
 Richmar TheraTouch CX2 2-Channel Electrotherapy & Ultrasound Combination System |
2 | Not published | $2,599.95 |
 Richmar TheraTouch CX4 4-Channel Electrotherapy & Ultrasound Combination System |
4 | Not published | $3,199.95 |
| Chattanooga Intelect Transport 2 Electrotherapy & Ultrasound Combination System |
2 | 1 MHz, 3.3 MHz | $4,173.48 |
 Chattanooga Intelect Legend 2 2-Channel Electrotherapy & Ultrasound Combination System |
2 | 1 MHz, 3 MHz | $5,108.35 |
| Chattanooga Intelect Legend 2 4-Channel Electrotherapy & Ultrasound Combination System |
4 | 1 MHz, 3 MHz | $5,976.42 |
| Vectra Genisys 4-Channel Electrotherapy & Ultrasound Combination System with Cart |
4 | Not published | $6,900.28 |
The price range here is substantial, from just under $2,600 to nearly $6,900, and the gap is not purely about channel count. The Vectra Genisys premium reflects its modular expansion capability rather than anything its base specification does that the Intelect Legend 2 cannot. For a clinic that treats primarily musculoskeletal conditions with standard ultrasound and electrotherapy protocols, the Intelect Legend 2 four-channel unit covers the clinical ground without paying for modular architecture you may never use. What actually separates the price tiers in this category goes beyond specifications on paper and into build quality, software depth, and how the unit is designed to hold up across high-volume clinical use.
Portability and Clinical Workflow
Not every clinical environment is a fixed treatment room. Sports sideline work, home visits, and multi-site practices create demand for devices that do not depend on mains power. The Chattanooga Intelect Transport 2 addresses this directly: its rechargeable battery pack is built into the unit, and a quick-connect magnetic cart attachment means it can move from a treatment table to a cart to a field bag without additional cabling. That combination is genuinely useful for anyone treating athletes in competition settings or covering home rehabilitation visits.
The Intelect Legend 2 series also carries an optional integral battery and ergonomic handle specifically to support home visits and eliminate the need for mains wires in the field. The practical distinction between the two Chattanooga lines is that the Transport 2 is optimised for mobility from the ground up, while the Legend 2 is a clinic-first device that can extend to mobile use when needed. For a practice that does both, the Legend 2 with the battery option is more flexible; for a primarily mobile practitioner, the Transport 2's design priorities are the better fit.
Clinic layout also shapes the decision more than it might initially seem. Units that attach magnetically to carts and remain docked between sessions reduce handling time and the risk of accidental drops. Units with independent touchscreen interfaces and built-in protocol libraries reduce the cognitive load on practitioners managing several patients in rotation. These are real workflow benefits, not marketing points, and they show up in how efficiently a busy room functions over the course of a full clinical day.
What the Research Supports and Where It Stops
Practitioners using therapeutic ultrasound on a daily basis tend to develop confident clinical intuitions about the modality, and most of those intuitions hold up reasonably well under scrutiny. The challenge is that study quality in this field varies considerably. Many older trials used intensities and protocols that would be considered sub-therapeutic by current standards, which partly explains why some systematic reviews have returned equivocal conclusions.
Where the evidence is clearest: ultrasound is a well-supported adjunct for tendinopathy and capsular conditions when parameters are set correctly and the modality is combined with exercise or manual therapy. Studies on plantar fasciitis and calcific tendinopathy in particular show meaningful functional outcomes. The thermal effects on collagen extensibility are grounded in established biophysics, and the non-thermal effects on fibroblast activity and cell membrane permeability are supported by a substantial body of in-vitro and animal work. What the broader research literature documents is a modality with real mechanistic grounding and specific indications where the clinical signal is strong.
Where the evidence is weaker: ultrasound as a standalone treatment for non-specific chronic pain, and its application to fracture healing at the intensities available in clinical devices, remain contested. The best posture for a practitioner is to use ultrasound where the indication is specific, the parameters are justified by the clinical picture, and the treatment is embedded in a broader rehabilitation programme. It is a powerful adjunct; used as a passive treatment in isolation, the results are predictably modest.
For clinicians building or expanding a practice, the question is rarely whether therapeutic ultrasound has a place; it clearly does. The sharper question is which device configuration actually fits the clinical environment you are building around it. Practitioners treating a high volume of musculoskeletal and sports injury patients also benefit from considering complementary recovery tools. A well-equipped clinic often pairs its ultrasound capability with massage equipment for a fuller suite of soft tissue interventions, since the two modalities address different phases of the same tissue response.
User-Defined Presets and Protocol Management
One of the more practically useful features across the current generation of devices is the ability to save and recall custom protocols. The Chattanooga Intelect Transport 2 stores up to 15 user-defined memory positions with independent controls for each stimulation channel. For a clinic with standardised protocols for common presentations, that means any practitioner can pull up the correct settings in seconds rather than reconstructing them from memory or paper records at the start of each session.
The Richmar SoundCare Plus takes a similar approach with 20 user-defined presets covering both pulsed and continuous modes. For a practice that treats a narrow range of conditions at high volume, the ability to lock in verified protocols and apply them consistently is more clinically valuable than a larger total parameter range that is rarely fully explored.
The Intelect Legend 2 goes further with its built-in anatomical library: electrode and applicator placement suggestions are tied to specific body regions and conditions, and the 7-inch touchscreen displays real-time treatment progress and a post-session summary. For training junior practitioners or maintaining consistency across a multi-clinician team, that kind of structured guidance embedded in the device itself is a genuine asset.
Software updateability is worth noting too. Chattanooga publishes free software upgrades for the Legend 2 line, with instructions included, which means the device can gain additional functionality over its clinical lifespan rather than becoming obsolete when protocols evolve. That changes the economics of the purchase when you factor in a typical equipment replacement cycle.
Choosing the Right Ultrasound Therapy Device for Your Setting
There is no universally correct answer here, but there are better and worse fits for specific clinical situations. A solo practitioner doing primarily sports rehabilitation and sideline coverage has different needs from a multi-room outpatient clinic with rotating staff. Working through four questions tends to clarify the decision more efficiently than a specification comparison alone.
- Do you treat conditions that require both ultrasound and electrotherapy in the same session? If yes, a combination unit is almost certainly more practical than two separate devices.
- How many treatment rooms and practitioners share the equipment? Higher volume and multiple users favour units with built-in protocol libraries, larger preset memory, and intuitive interfaces over manual dial-based systems.
- Does your practice include mobile or field-based treatment? Battery capability and transport-ready design are non-negotiable in that context, not optional extras.
- Is your modality mix likely to expand over the next three to five years? If so, a modular platform that can add laser or sEMG without replacing the base unit may justify its higher upfront cost.
More therapeutic ultrasound machines worth a look
Chattanooga Intelect Legend 2 4-Channel Electrotherapy & Ultrasound Combination System
Chattanooga Intelect Legend 2 2-Channel Electrotherapy & Ultrasound Combination System
Frequently asked questions
Who is this equipment designed for, and can a member of the public buy and use one at home?▾
These are clinical-grade devices designed for use under the prescription and supervision of a licensed medical practitioner. The Chattanooga Intelect Legend 2 units even carry an explicit note to that effect in their documentation. A member of the public can purchase this equipment, but it should only be operated as part of a supervised treatment plan from a qualified clinician, not as a general wellness gadget.
What conditions has therapeutic ultrasound shown the strongest evidence for treating?▾
Soft tissue injuries are the best-supported indication, including lateral epicondylalgia, plantar fasciitis, rotator cuff tendinopathy, and Achilles pathology. Adhesive capsulitis also responds well, likely because heating the contracted inferior capsule improves extensibility before stretching. Bursitis, myositis, muscle spasm, and scar tissue or shortened tendons from prior injury are other documented applications with a sound mechanical rationale behind them.
Is this type of device safe, and are there situations where it should not be used?▾
Therapeutic ultrasound is well-established in clinical settings, but it is not without contraindications. Applying it over active growth plates, malignancies, areas of impaired sensation, or directly over implanted metal or pacemakers are standard precautions. Because parameter errors, particularly running continuous mode at high intensity over a bony prominence, can cause periosteal pain or tissue damage, contraindication screening and parameter selection must be handled by a qualified clinician rather than left to guesswork.
What do these units cost, and what accounts for the price differences between them?▾
The Chattanooga Intelect Transport 2 is priced at $4,173.48, the Chattanooga Intelect Legend 2 2-channel unit at $5,108.35, the 4-channel Legend 2 at $5,976.42, and the Vectra Genisys 4-channel system with cart at $6,900.28. The gap between entry and top reflects meaningful differences: channel count, display quality, built-in protocol libraries, modular expandability, and battery capability. A clinic doing high patient volumes will generally find the additional investment in a more capable unit worthwhile over time.
How do you set up one of these devices for a first treatment session?▾
The Chattanooga Intelect Legend 2 is probably the most straightforward starting point, since it includes built-in suggested protocol settings developed around current clinical practices and a 7 in capacitive touch screen with an anatomical library showing electrode and applicator placement. You select frequency based on target depth (1 MHz for structures at 4 to 5 cm, 3 MHz for superficial tissue within 1 to 2 cm), set intensity and duty cycle for the clinical goal, apply coupling gel, and keep the soundhead moving continuously throughout the session to avoid standing waves and periosteal hotspots.
What are the ongoing costs of running a therapeutic ultrasound device in a clinical setting?▾
The main consumable is ultrasound coupling gel, which is a modest per-session expense. Soundheads are the component most likely to need eventual replacement, and different applicator sizes (the Intelect Transport 2, for example, offers 2 cm2, 5 cm2, and 10 cm2 heads) are purchased separately if you need a full range. The Vectra Genisys uses an Electronic Signature system where applicators are automatically recognized on connection, which simplifies swapping but means you are working within that manufacturer's accessory ecosystem. Electricity draw for any of these units is minimal.
How do you maintain a therapeutic ultrasound device to keep it performing reliably?▾
Keeping the soundhead clean and free of dried coupling gel is the most important routine step, since residue can affect acoustic output and ERA (effective radiating area) over time. The transducer face should be inspected regularly for cracks or chips, which can distort the beam. The Vectra Genisys applicators are waterproof for underwater treatments, which simplifies disinfection for that mode. For devices with rechargeable batteries, like the Intelect Transport 2 and Legend 2, following the manufacturer's charge cycle recommendations will preserve battery longevity.
What is the most common mistake clinicians make when using an ultrasound therapy device?▾
Choosing the wrong frequency for the target tissue depth is probably the most frequent error, and it quietly undermines results without producing any obvious warning sign during the session. Applying 3 MHz to a deep hip ligament at 4 to 5 cm, for instance, means most energy is absorbed in superficial tissue and never reaches the structure you are trying to treat. A close second is holding the soundhead stationary, which concentrates energy at one point and risks periosteal pain. Both mistakes are easy to avoid once practitioners understand how frequency, penetration depth, and continuous soundhead movement interact.
