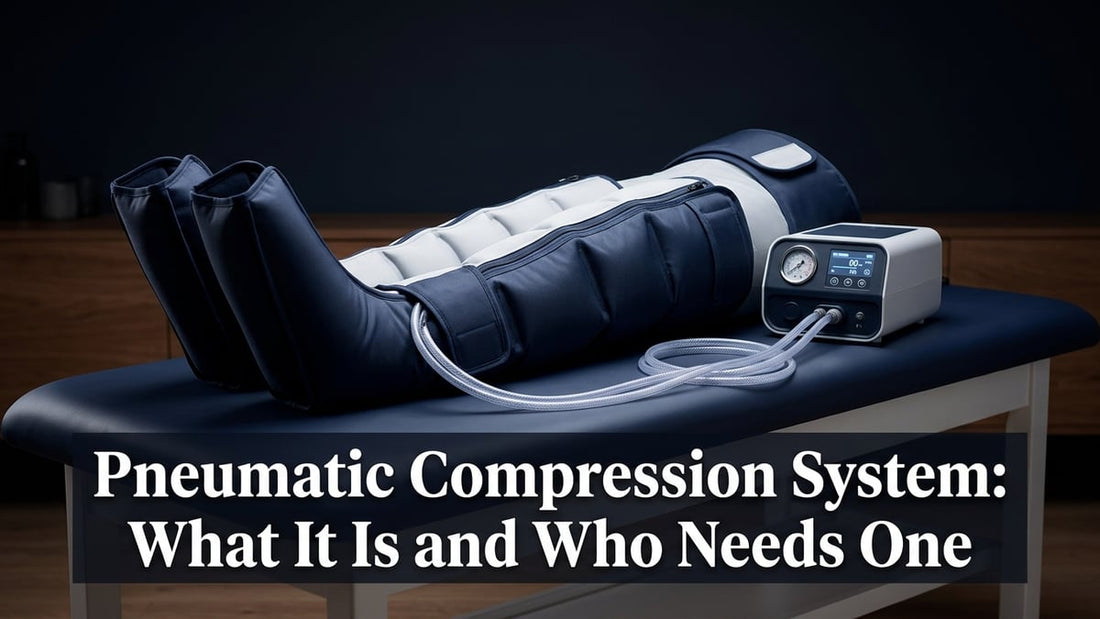

Pneumatic Compression System: What It Is and Who Needs One
Discover how inflatable sleeve technology boosts circulation, speeds recovery, and who stands to benefit most from this powerful therapeutic device.
A pneumatic compression system uses air-filled chambers to apply sequential, cyclical pressure to a limb, mimicking the natural pumping action of working muscles to accelerate venous return, clear metabolic waste, and reduce swelling. Athletes, post-surgical patients, and those managing lymphedema or DVT risk benefit most from these devices.
- Sequential beats uniform compression: Uniform inflation can temporarily block venous return before fluid clears, while sequential compression drives fluid proximally in a wave, which is why the order of chamber inflation actually matters clinically.
- 20 to 100 mmHg range: Most recovery and rehabilitation systems operate between 20 and 100 mmHg, with lower settings targeting lymphatic flow and higher settings around 60 to 80 mmHg contributing to muscle soreness reduction.
- Combining cold and compression produces a stronger perfusion response than either modality alone because vasoconstriction from cold amplifies the reactive hyperemia that happens during the release phase.
- Active DVT is a contraindication: Pneumatic compression prevents clot formation in high-risk patients before a clot develops, but applying pressure over an established thrombus risks dislodging it, so confirmed DVT requires physician evaluation first.
- Within one to two hours post-training: Using compression within one to two hours of a session, when inflammatory mediators are highest in the tissue, gives lymphatic clearance the best chance of reducing next-day soreness.
Where to start
Therabody RecoveryAir Prime Pneumatic Compression System – Small
Richmar REX Recovery Exercise X-Trainer Pneumatic Compression DVT System
Pneumatic Compression: The Mechanism Behind the Pressure
A pneumatic compression system uses air-filled chambers to apply controlled, cyclical pressure to a limb or body segment. That pressure squeezes the tissue, then releases, then squeezes again in a deliberate sequence designed to mimic and amplify the body's natural circulatory mechanisms.
The basic physics are straightforward. Inflating a chamber around a limb increases interstitial pressure, which forces fluid through the capillary beds and into the lymphatic and venous systems. When the chamber deflates, perfusion rushes back into the tissue. Repeated across a treatment session, this cycle accelerates clearance of metabolic byproducts, including lactate and inflammatory cytokines, while driving oxygenated blood back into recovering muscle.
What distinguishes a pneumatic compression system from a simple elastic sleeve is the active, programmable nature of the pressure. A static sleeve applies constant compression that can actually impede venous return if worn too tightly. A pneumatic system applies pressure in a specific sequence, typically distal to proximal, meaning it pushes fluid from the foot upward toward the trunk the way a working calf muscle does during walking. This is not a coincidence; it is the design intent.
Sequential vs. Uniform Compression: Why the Order of Inflation Matters
Not all pneumatic systems inflate all chambers simultaneously. The distinction between uniform and sequential compression has meaningful clinical consequences. Uniform inflation compresses the entire limb at once, which can temporarily obstruct venous return before any fluid has a chance to clear the distal segments. Sequential compression, by contrast, inflates chambers one at a time starting at the most distal point, creating a peristaltic wave that actively propels fluid proximally.
The Richmar REX Recovery Exercise X-Trainer is an example of a system built around this principle. It operates as a four-part sequential leg compression system, moving through its garment chambers in order. The REX also offers two treatment modes that differ in the wave advancement increment, giving the clinician or athlete some control over how aggressively the peristaltic effect is applied. The distinction between a 1 cm and 5 cm advancement mode is not trivial; faster, larger advances tend to feel more intense and may be better suited to athletes managing high training loads, while finer increments can be better tolerated in acute post-surgical or DVT-risk contexts.
For practitioners managing patients with lymphedema or chronic venous insufficiency, sequential systems tend to be the clinical preference precisely because of this directionality. The research on intermittent pneumatic compression for DVT prophylaxis, accumulated over decades in surgical and critical care settings, consistently shows greater reductions in deep vein thrombosis incidence with sequential versus uniform devices.
Pressure Settings and Session Timing: What the Numbers Mean
Pressure is measured in millimetres of mercury (mmHg), the same unit used for blood pressure. Most therapeutic pneumatic compression systems for recovery and rehabilitation operate somewhere in the 20 to 100 mmHg range. That window is wider than many practitioners expect. At the lower end, around 20 to 40 mmHg, the effect is primarily lymphatic and venous. At 60 to 80 mmHg you begin to see more substantial muscular compression that can contribute to DOMS reduction. Going above 100 mmHg without clinical justification tends to cause discomfort and can theoretically aggravate certain conditions, including arterial insufficiency.
The Therabody RecoveryAir Prime offers pressure across the full 20 to 100 mmHg range, selectable in increments of 10, which gives the user meaningful control without overwhelming them with options. The adjustable pressure hold and release time, ranging from 1 to 60 seconds, adds another layer of customization that matters more than it looks on paper. Holding pressure for 30 to 60 seconds allows deeper compression of the tissue and more complete lymphatic recruitment, while shorter hold times with rapid cycling feel more like a massage and tend to suit active recovery scenarios better.
Session duration is equally important. The RecoveryAir Prime offers four preset intervals at 20, 40, 60 minutes, and a continuous mode. The REX keeps things tighter with options of 10, 20, and 30 minutes. Research on post-exercise compression generally suggests that 20 to 30 minutes is sufficient for most recovery applications, while lymphedema management typically calls for longer sessions. For practitioners building protocols, starting conservatively and adjusting based on patient tolerance and outcome data is the practical approach.
Cold Compression: When Temperature Enters the Protocol
A growing subset of pneumatic compression systems integrates temperature control alongside mechanical pressure, and the clinical rationale for this combination is well established. Cold therapy on its own reduces pain through local nerve conduction slowing and vasoconstriction. Compression on its own accelerates fluid clearance. When applied together, the effects are not simply additive; the vasoconstriction from cold followed by reactive hyperemia during the release phase of compression creates a more pronounced perfusion response than either modality alone. Studies on post-surgical recovery consistently document better short-term outcomes with combined cold and compression versus either treatment in isolation.
The Game Ready GRPro 2.1 is built on this principle. The control unit drives both active temperature exchange and pneumatic compression simultaneously through its wrap system. Cold therapy at 40 to 60 degrees Fahrenheit is the documented sweet spot for tissue penetration without causing cryogenic injury, and Game Ready's system is designed to maintain temperature within that therapeutic range throughout the session. For practitioners treating post-operative knees, shoulders, or ankles, the consistency of temperature delivery matters considerably more than peak coldness, since a system that starts cold and rapidly warms is delivering most of its benefit in the first five minutes.
For clinical settings that need to treat multiple patients or address multiple pathologies, the Game Ready Med4 Elite extends this concept further. It adds thermotherapy and rapid contrast therapy to the cryotherapy and intermittent pneumatic compression already available in the GRPro 2.1. Rapid contrast therapy, where the system alternates between cold and heat in under a minute, is particularly relevant for sub-acute injuries and later-stage rehabilitation where tissue extensibility and blood flow are the primary targets rather than acute edema control. Understanding how active cold and compression interact differently from a passive ice bag is what separates an informed protocol from an inherited habit.
Who Actually Benefits: Clinical Populations and Athletic Users
Pneumatic compression systems were originally developed for hospital use, specifically for DVT prophylaxis in post-surgical and immobile patients. That origin is still relevant. Any patient facing extended bed rest, lower limb surgery, or a period of significantly reduced ambulation has a genuine clinical need for intermittent pneumatic compression to reduce the risk of thrombus formation. The Richmar REX is designed with this application in mind, and its inclusion as a DVT prevention system reflects a real clinical gap that simpler recovery tools cannot address.
Beyond DVT prophylaxis, the populations that tend to see consistent benefit include athletes managing high training volumes, patients recovering from orthopedic procedures, individuals with chronic venous insufficiency or lymphedema, and anyone dealing with significant post-exercise muscle soreness. The mechanism differs slightly across these groups. Athletes primarily benefit from faster lactate clearance and reduced delayed onset muscle soreness. Post-surgical patients benefit more from edema control and improved lymphatic drainage. Chronic venous patients benefit from reinforcing venous return that the calf muscle pump is no longer doing adequately on its own.
One population that gets less attention but arguably has the most consistent evidence behind compression therapy is long-distance runners and cyclists, where repeated eccentric loading produces significant muscle damage and subsequent inflammatory response. For this group, a device like the Therabody RecoveryAir Prime with its 180-minute battery life and portable pump is particularly practical since recovery often happens at a competition venue or on the road, not in a clinic. The size-specific fit of the RecoveryAir Prime, with the small variant accommodating those 5 feet to 5 feet 6 inches tall, also matters in this context, since poorly fitted garments significantly reduce the therapeutic effect.
Compression Sleeves vs. Full Boots: Choosing the Right Garment
The garment is as important as the pump. A powerful pneumatic system paired with a poorly fitted or anatomically mismatched wrap delivers mediocre results regardless of its settings. For lower limb applications, the choice typically comes down to targeted sleeves, which cover ankle to knee or knee to hip, versus full leg boots that run from foot to upper thigh. Full boots address the entire venous and lymphatic tree of the leg and tend to produce more comprehensive fluid clearance, but targeted sleeves are easier to apply independently, less cumbersome during partial weight-bearing, and sometimes more appropriate when only one region needs treatment.
For cold compression applications, anatomical specificity becomes even more critical. The Game Ready wrap system, designed to work with both the GRPro 2.1 and the Med4 Elite, takes a body-part-specific approach: distinct wraps for the knee in straight or articulated configurations, shoulder wraps in left and right versions across chest size ranges, ankle wraps sized for larger feet, and hip and groin wraps shaped for left versus right anatomy. This level of specificity is not product proliferation for its own sake. A wrap contoured to the left hip applies pressure and cold more uniformly than a generic sleeve adapted to the same region, and surface contact quality directly determines how much of the therapeutic effect actually reaches the tissue.
Practitioners stocking a clinical facility should think carefully about which body parts they treat most frequently and build their wrap inventory accordingly rather than buying every variant immediately. For athletic recovery programs focused primarily on the lower legs and calves, full leg compression boots used with a pump like the RecoveryAir Prime cover most of the use cases. For post-surgical rehabilitation across multiple joints, the broader Game Ready wrap catalog is worth the investment. You can browse the full range of compression boots to compare form factors and find the garment that fits your specific protocol.
Comparing Pneumatic Compression Systems Across Price Points
The market for pneumatic compression systems spans an enormous price range, and the differences between an entry-level unit and a clinical multi-modality platform are real enough to justify the cost gap in the right setting. Below is a structured comparison of the main systems available here, organized by what each one actually does and who it is designed to serve.
| Model | Modalities | Treatment Modes | Price |
|---|---|---|---|
| Richmar REX Recovery Exercise X-Trainer Pneumatic Compression DVT System |
Sequential pneumatic compression | 2 modes, 3 time settings | $599.99 |
| Therabody RecoveryAir Prime Pneumatic Compression System – Small |
Pneumatic compression | 4 time intervals, continuous mode | $699 |
 Body Helix 6.5" Thigh Compression Sleeve for Injury Management & Recovery |
Static compression sleeve | Passive wear | $67 |
 Body Helix Adjustable Sacroiliac Joint Compression Wrap for Pain Relief and Support |
Static compression wrap | Passive wear | $65 |
 Body Helix Adjustable Shoulder Compression Sleeve - Maximum Comfort, Range of Motion, Machine Washable |
Static compression sleeve | Passive wear | $100 |
 Game Ready Med4 Elite Hot/Cold Compression & Contrast Therapy System |
Cryo, thermo, contrast therapy, IPC | Dual-user, touchscreen, all modalities combinable | $26,048.40 |
The Body Helix sleeves and wraps in this list serve a different function from the powered systems. They are passive compression supports, useful for injury prevention and structural support during activity, but they do not produce the peristaltic fluid clearance that makes a pneumatic system therapeutically distinct. A patient wearing a Body Helix thigh sleeve during training and then using the RecoveryAir Prime post-session is using two genuinely different tools for two different purposes, and both have a place. The Med4 Elite, on the other end of the spectrum, is a clinical platform that replaces several standalone devices and is most relevant in a physical therapy clinic or sports medicine facility treating significant patient volumes.
Contraindications and Clinical Precautions
Pneumatic compression is generally safe for most populations, but there are situations where it is contraindicated or where extra caution is warranted. Active deep vein thrombosis is a primary contraindication, which is counterintuitive given how often these systems are discussed in the DVT context. The distinction is between prevention in high-risk patients before a clot forms, where pneumatic compression is protective, and applying mechanical pressure over an established thrombus, where the risk of dislodging the clot is real. Any patient with suspected or confirmed DVT should be evaluated by a physician before compression therapy begins.
Other precautions include peripheral arterial disease, where reducing venous pressure can worsen distal perfusion, and acute infections or wounds in the compression area. For cold compression specifically, clinicians should also screen for conditions affecting cold sensitivity, including Raynaud's phenomenon and cold urticaria, and exercise caution with patients who have impaired sensation in the treated limb due to neuropathy. The ankle-brachial index is a useful screening tool for vascular contraindications before initiating compression in older patients or those with diabetes.
For athletic users without underlying conditions, the main practical precaution is pressure calibration. Starting at 20 to 40 mmHg and increasing gradually allows the user to find a comfortable and effective pressure rather than immediately defaulting to the highest setting. The approach to cold compression in knee recovery illustrates this calibration well: the tissue response differs substantially depending on whether the injury is acute, sub-acute, or chronic, and protocol parameters should shift accordingly.
Building a Recovery Protocol Around Pneumatic Compression
Pneumatic compression works best as part of a structured recovery sequence rather than a standalone modality applied randomly after training. For athletes, the most evidence-backed approach is to use compression within one to two hours of the training session, when inflammatory mediators are at their highest concentration in the tissue and lymphatic clearance has the greatest impact on next-day soreness. Waiting until the following morning reduces the window of benefit, though even delayed compression beats nothing for multi-day training blocks.
For post-surgical patients, the protocol is typically defined by the treating surgeon and physical therapist, but the general principle is that compression begins within 24 hours of the procedure and continues at regular intervals throughout the acute phase. The Game Ready GRPro 2.1 guidelines recommend at least four sessions daily of approximately 30 minutes each for cold compression, and this level of dosing is consistent with the literature on cryotherapy frequency in post-surgical recovery. Practitioners who want to understand how the GRPro 2.1 wrap ecosystem fits into these protocols will find that matching the right wrap to each body part is where the clinical specificity of the system pays off most clearly.
Frequency and duration should be adjusted as the patient progresses. In the acute phase, the goal is edema control and pain reduction, so shorter, more frequent sessions at moderate pressure are appropriate. As the patient moves into the sub-acute and rehabilitation phases, sessions can become longer and pressure can increase, with the focus shifting toward improving circulation and tissue extensibility. The Game Ready Med4 Elite's rapid contrast therapy mode becomes more relevant at this later stage, when promoting blood flow rather than suppressing it becomes the therapeutic priority.
Portable Home Units vs. Clinical Systems: Making the Right Call
The gap between a portable consumer device and a clinical platform is real, but it does not always map neatly onto a quality gap. The Therabody RecoveryAir Prime's 180-minute battery, TruGrade pressure technology, and FastFlush inflation speed address the needs of an athlete managing recovery between training sessions with genuine engineering behind them. The Richmar REX's four-part sequential design and DVT-specific indications reflect a clinical application that required regulatory consideration in its development. Neither of these is a toy.
Where clinical systems like the Game Ready GRPro 2.1 and especially the Med4 Elite differentiate themselves is in modality breadth, garment specificity, and the ability to treat multiple patients efficiently. The Med4 Elite's dual-user capacity, touchscreen interface, and combination of four modalities in one device are genuinely irreplaceable in a high-volume clinic where patient throughput matters and treatment needs vary across the schedule. For a physical therapist seeing 20 patients per day across a range of diagnoses, that versatility is worth the substantial cost difference.
For an individual athlete, a strength and conditioning coach, or a small private practice, the calculus runs the other way. A portable unit that fits in a backpack, runs for three hours on a charge, and covers the most common recovery use case thoroughly is often the right answer. The REX even includes a backpack in the box, which signals exactly how that product is intended to be used. Understanding the full range of options available, from single-purpose boots to multi-modality clinical platforms, starts with browsing the cold compression sleeves, boots and machines collection, which covers the full spectrum from passive sleeves through active pneumatic and cold compression systems.
The decision ultimately comes down to patient population, treatment frequency, and budget. A single practitioner treating primarily post-surgical orthopedic patients will find the Game Ready system justifies its cost through clinical outcomes and patient satisfaction. A coach managing a team of endurance athletes will find the Therabody or Richmar units cover the use case at a fraction of the price. Both conclusions can be correct, and the better question is not which system is superior in the abstract, but which one fits the specific clinical or athletic context in which it will actually be used.
Garment Care and System Maintenance
Pneumatic compression garments that contact the skin need regular cleaning, and this is more than a hygiene formality. Accumulated sweat and skin oils degrade elastomeric materials and can introduce bacteria that cause skin irritation in vulnerable patients. The Therabody RecoveryAir Prime is described as extremely easy to clean, and this matters for recovery contexts where the boots are being used multiple times per week. For clinical settings, garment turnover between patients requires either a dedicated garment per patient or a robust cleaning protocol with a clear contact time for any disinfecting agent used.
More cold compression sleeves, boots & machines worth a look
Game Ready Med4 Elite Hot/Cold Compression & Contrast Therapy System
Game Ready GRPro 2.1 Cold Compression Control Unit with AC Adapter and 6' Hose
Frequently asked questions
What is a pneumatic compression system and how does it actually work?▾
A pneumatic compression system uses air-filled chambers to apply cyclical pressure to a limb, then releases, then compresses again. This squeezes fluid out of the tissue and into the lymphatic and venous systems, then lets oxygenated blood rush back in during the release phase. The result is faster clearance of metabolic waste products like lactate and inflammatory cytokines compared to simply resting or wearing a static sleeve.
Who benefits most from using a pneumatic compression system?▾
Athletes managing high training loads, post-surgical patients, and people dealing with lymphedema or chronic venous insufficiency are the most obvious candidates. That said, anyone who spends long hours on their feet or experiences significant lower-limb swelling can see real benefit. The key variable is what you need from the device: pure recovery work is quite different from clinical DVT prophylaxis or post-operative edema management.
Is pneumatic compression safe to use at home without clinical supervision?▾
For general recovery use, yes, provided you stay within sensible pressure ranges and do not have contraindications like arterial insufficiency, active deep vein thrombosis, or open wounds on the treated limb. A unit like the Therabody RecoveryAir Prime, which operates between 20 and 100 mmHg in increments of 10, gives you enough control to start conservatively and adjust. If you have a diagnosed vascular condition or are post-surgical, check with your physician before starting.
What do pneumatic compression systems cost, and what drives the price difference?▾
The range is wide. The Richmar REX Recovery Exercise X-Trainer sits at $599.99 and covers sequential leg compression with adjustable pressure and three time settings. The Therabody RecoveryAir Prime comes in at $699 and adds features like TruGrade pressure technology, a 180-minute battery, and hold-and-release timing adjustable from 1 to 60 seconds. At the clinical end, the Game Ready Med4 Elite, which combines cold, heat, contrast therapy, and compression for dual users, is priced at $26,048.40 and is an FDA-regulated medical device requiring a prescription.
How do I set up a pneumatic compression system for the first time?▾
Most consumer units are straightforward. With the Therabody RecoveryAir Prime, for example, you connect the boots to the pump, set your pressure (starting around 20 to 40 mmHg is sensible for a first session) and choose a time interval, then sit back. The Prime also includes a blocker plug for single-garment use if you only need to treat one leg. The Richmar REX similarly includes leg garments and a pump, and the backpack makes it easy to store or transport once set up.
What are the ongoing costs of running a pneumatic compression system?▾
For battery-powered units like the RecoveryAir Prime, the main ongoing cost is electricity for charging, which is negligible. The garments and pump are durable components, not consumables. Cold compression systems that use water and ice, like the Game Ready GRPro 2.1, require ice for each session, which adds a small but real recurring cost depending on how often you use it. Clinical systems may involve periodic maintenance or replacement of hoses and wraps over time.
How do I know which size compression boot or garment to buy?▾
Sizing varies by brand and model. The Therabody RecoveryAir Prime Small fits users from 5 feet to 5 feet 6 inches tall, with boot dimensions of 27 to 33.5 inches long by 27.6 inches wide. If you fall outside that range, a different size of the Prime is the right answer rather than trying to make the small fit. The Richmar REX takes a different approach entirely, offering universal-size leg garments designed to fit a broader range of users without size-specific options.
What mistakes do people commonly make when using a pneumatic compression system?▾
Starting too high on pressure is the most frequent one. Beginning at 20 to 40 mmHg and working up gives your body time to adapt and helps you figure out what actually feels therapeutic versus uncomfortable. People also underestimate session timing: 20 to 30 minutes is generally enough for post-exercise recovery, but edema and lymphatic work often benefits from longer sessions. Finally, using hold times that are too short for the goal is common. If you are trying to reduce swelling, holds of 30 to 60 seconds give fluid time to clear each segment before the next chamber inflates, which is where the real clinical benefit comes from.
