Product Information

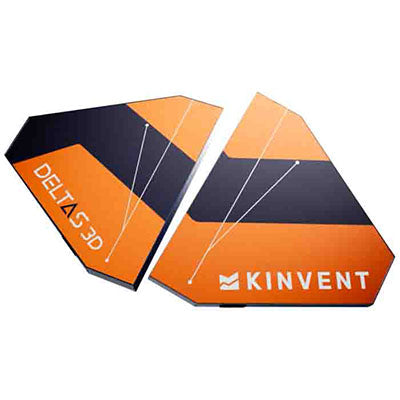

Kinvent 3D Deltas uses two independent wireless platforms to measure three-dimensional ground-reaction
force across the X, Y, and Z axes.
Three triaxial force transducers in each platform support horizontal, lateral, and vertical force
analysis with full Center-of-Pressure measurement.
A 1500-Hz acquisition frequency captures change-of-direction, multidirectional jump, balance, stability,
and force-vector data in the Kinvent App.
Each anti-slip platform measures 52×564×634 mm, weighs 15.5 kg, supports up to 1000 kg, and provides
approximately 12 hours of battery operation.
Product Features
Three-axis force capture quantifies horizontal, lateral, and vertical loading for a complete view of ground-reaction forces.
Independent wireless platforms support multidirectional movement, change-of-direction, jump, balance, and stability assessment.
High-speed acquisition and Kinvent App connectivity deliver detailed force vectors and real-time assessment feedback.
Three-Axis Force Measurement
Multi-Directional Movement Analysis
High-Speed Data Capture
Kinvent App Integration
Kinvent 3D Deltas Multi-Axis Force Plate System
Three-Dimensional Force Analysis:
Three triaxial transducers per platform capture X-, Y-, and Z-axis forces for detailed force-vector and
Center-of-Pressure evaluation.
Change-of-Direction Testing:
Horizontal and lateral measurements reveal braking, propulsion, and directional loading during cutting
and agility tasks.
Multidirectional Jump Assessment:
Combined vertical and shear-force data supports analysis of takeoff, landing, symmetry, and force
direction during dynamic jumps.
Real-Time Data Integration:
Wireless communication sends synchronized platform measurements to the Kinvent App for immediate review
and longitudinal tracking.
About Kinvent
Kinvent develops connected measurement technologies for rehabilitation, sports performance, and research. Its ecosystem combines force, strength, movement, and neuromuscular assessment sensors with the Kinvent App to provide objective real-time data, progress tracking, and data-driven assessment workflows.
Why Choose Us?
Choose Peak Primal Wellness for a personalized, community-driven approach to health. We prioritize your well-being with high-quality products, tailored solutions, and 24/7 support.
As a family-owned business, we build lasting relationships, offering authentic, effective solutions to help you achieve your wellness goals.
Join our thriving community and embark on a journey toward optimal health with passionate professionals who genuinely care. At Peak Primal Wellness, you're not just a customer—you're family.
Why Thousands of Health and Fitness Lovers Choose
Them
Support
Nearly impossible to reach a real person. Endless chatbot loops, auto-replies, and unreturned emails.
Real humans. We answer quickly. Always here, always helpful
Order Processing
Orders often sit for days before being acknowledged. No clear confirmation, updates, or timelines.
Orders are processed immediately. You'll receive confirmation, tracking, and real-time updates within hours.
Shipping
Slow, vague, and unoptimized. Basic carriers, minimal tracking, and delayed delivery windows.
Fast, insured, and fully trackable shipping — optimized for speed and visibility every step of the way.
Pricing
Hidden fees, bait and switch tactics, post purchase price increases.
Our relationships guarantee the lowest prices. Transparent and fair. No surprises at checkout, and no shady
tactics after the sale.
Returns & Warranty
Policies are confusing and designed to frustrate, delay, and deny returns with zero accountability.
Clear, honest, and fast. Our return policy is built to protect your investment, not dodge responsibility.
Support
Frustrating automated responses
Fast, helpful and always supportive
Order Processing
Delays and lack of communication
Instant processing and updates
Shipping
Slow, unreliable and delayed service
Fast, insured, trackable shipping
Pricing
Deceptive pricing practices
Lowest prices, no surprises
Return & Warranty
Frustrating, misleading return policies
Clear, honest return policy
Specifications
| Official Product Name | Kinvent 3D Deltas |
| Primary Measurement Type | Three-axis force measurement |
| Platform Dimensions Each | 52×564×634 mm each platform size |
| Platform Weight Each | 15.5 kg per platform weight |
| Maximum Force Capacity | 1000 kg per platform maximum |
| Acquisition Frequency Rate | 1500-Hz acquisition frequency |
| Wireless Range Distance | 20-meter wireless range |
| Battery Operating Time | Twelve-hour rechargeable battery operating life |
| Charging Time Requirement | Two-hour complete battery charging time |
| Force Sensor Configuration | Three triaxial sensors per platform |
| Ground Clearance Height | 5-mm low-profile platform ground clearance |
Warranty & Returns
Return Policy
To request a return or refund, customers can use our contact form, email info@peakprimalwellness.com, or phone – (877) 689-4898 . Once the product is inspected and confirmed to be in brand new condition, we will initiate the refund, which typically takes 5–7 business days to post back to the original payment method. Refunds can be applied via the customer’s preferred method, including card or bank transfer. Shipping instructions and the return address will be provided upon contacting customer service. Please include photos if the product arrives damaged. Click here to view our complete return policy for more details.
Shipping Policy
Customers may contact us by phone or email anytime to inquire about the status of their order. While we may not always have a tracking link available before the order ships, we are happy to check its current status for you. If an item is never received, please contact us immediately. We will promptly file a claim on your behalf and ship a replacement to ensure you receive your product as soon as possible. Click here to view our complete Shipping policy for more details.
Frequently Asked Questions
How are three-axis forces recorded?
Each platform uses three triaxial transducers to record synchronized force across the X, Y, and Z axes.
How are the platforms connected?
Pair both independent platforms wirelessly in the Kinvent App and confirm that each platform reports a stable connection before testing.
How should the platforms be zeroed?
Place both platforms unloaded on a firm, level surface, then complete the Kinvent App zeroing procedure before the participant steps on them.
How is Kinvent App pairing performed?
Enable Bluetooth, open the applicable Kinvent App assessment, select both 3D Deltas platforms, and verify their connection status.
How should platform placement be prepared?
Set the platforms on a rigid, level, dry surface with stable contact and enough surrounding space for the planned multidirectional task.
How should the force-plate surfaces be cleaned?
Power down the platforms and wipe the anti-slip surfaces with a soft, lightly damp cloth and approved mild cleaner; do not immerse them.
How should battery status be monitored?
Check each platform battery indicator in the Kinvent App before a session and recharge both units when their available charge is insufficient.
How should the system be stored?
Store both platforms powered off in a dry, protected location where the surfaces, sensors, and charging connections cannot be damaged.
