Product Information

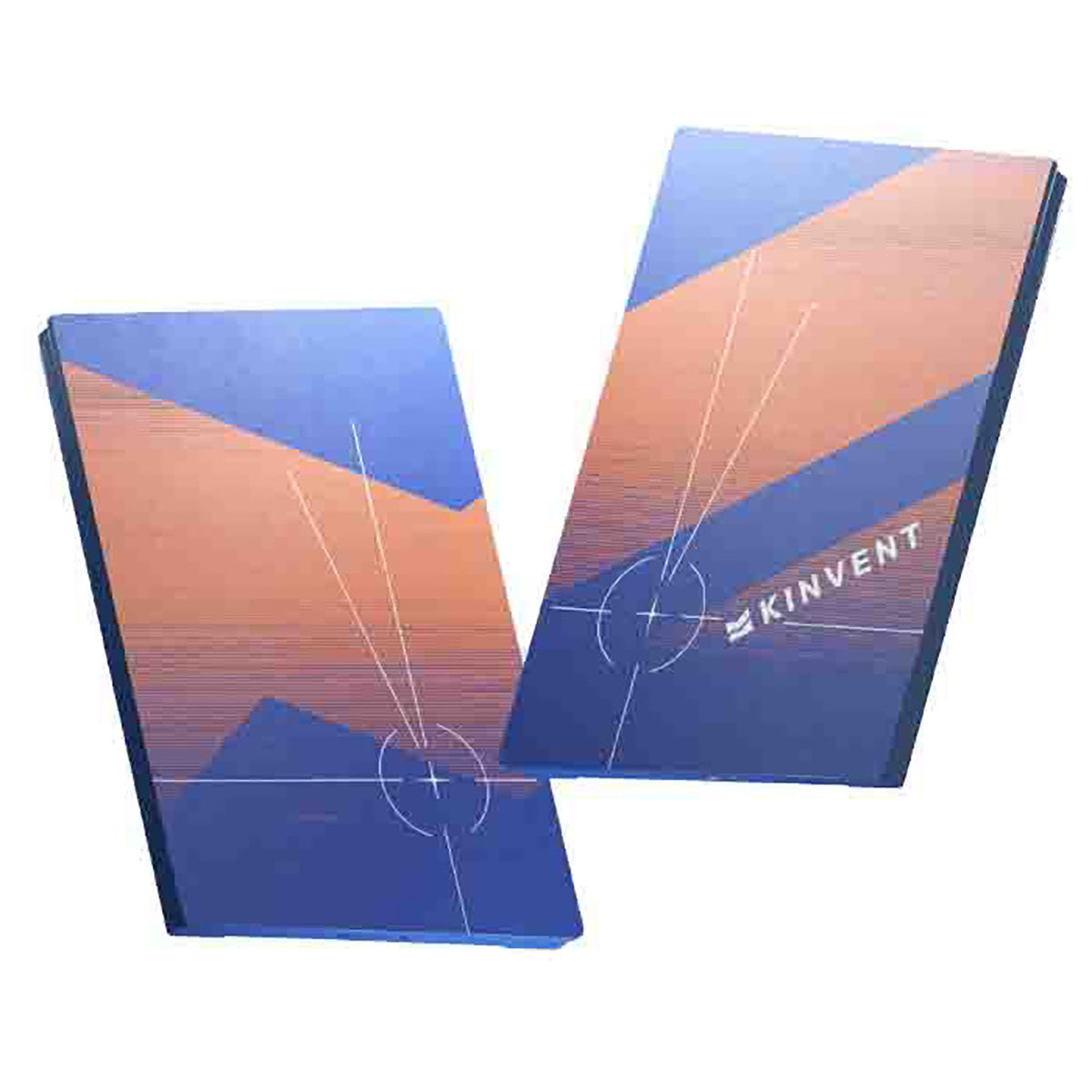

Kinvent K-Deltas XL are extra-large portable force plates for vertical jump, dynamic strength,
force-distribution, balance, landing, asymmetry, and functional testing.
The expanded 49×810×470 mm surface supports broad stances and high-load tasks while each platform
measures standard force up to 2400 kg.
A 4000-Hz acquisition frequency captures rapid takeoff and landing events with ±0.1% accuracy and
wireless Kinvent App connectivity up to 20 m.
Each platform weighs 13.3 kg and provides approximately 20 hours of battery operation with about two
hours required for charging.
Product Features
The extra-large platform surface provides more usable testing area for broad stances, dynamic landings, isometric tasks, and functional movement.
High-capacity measurement supports up to 2400 kg per platform for demanding force, power, and lower-limb performance assessments.
Ultra-high 4000-Hz acquisition captures rapid jump and landing events for detailed Kinvent App analysis.
Extra-Large Platform Surface
High-Capacity Force Measurement
Ultra-High Sampling Rate
Advanced Jump Analysis
Kinvent K-Deltas XL Large Portable Force Plates
Expanded Testing Surface:
The extra-large platform area accommodates broader stances and dynamic tasks while supporting confident
foot placement during functional assessment.
High-Load Force Measurement:
Each platform measures up to 2400 kg with ±0.1% accuracy for demanding strength, power, and isometric
workflows.
Landing and Jump Analysis:
High-speed force capture reveals takeoff, landing, impulse, asymmetry, and force-distribution
characteristics during explosive movement.
Real-Time Force Data:
Wireless Kinvent App integration provides immediate visualization, trial comparison, participant
tracking, and progress review without cabled acquisition.
About Kinvent
Kinvent develops connected measurement technologies for rehabilitation, sports performance, and research. Its ecosystem combines force, strength, movement, and neuromuscular assessment sensors with the Kinvent App to provide objective real-time data, progress tracking, and data-driven assessment workflows.
Why Choose Us?
Choose Peak Primal Wellness for a personalized, community-driven approach to health. We prioritize your well-being with high-quality products, tailored solutions, and 24/7 support.
As a family-owned business, we build lasting relationships, offering authentic, effective solutions to help you achieve your wellness goals.
Join our thriving community and embark on a journey toward optimal health with passionate professionals who genuinely care. At Peak Primal Wellness, you're not just a customer—you're family.
Why Thousands of Health and Fitness Lovers Choose
Them
Support
Nearly impossible to reach a real person. Endless chatbot loops, auto-replies, and unreturned emails.
Real humans. We answer quickly. Always here, always helpful
Order Processing
Orders often sit for days before being acknowledged. No clear confirmation, updates, or timelines.
Orders are processed immediately. You'll receive confirmation, tracking, and real-time updates within hours.
Shipping
Slow, vague, and unoptimized. Basic carriers, minimal tracking, and delayed delivery windows.
Fast, insured, and fully trackable shipping — optimized for speed and visibility every step of the way.
Pricing
Hidden fees, bait and switch tactics, post purchase price increases.
Our relationships guarantee the lowest prices. Transparent and fair. No surprises at checkout, and no shady
tactics after the sale.
Returns & Warranty
Policies are confusing and designed to frustrate, delay, and deny returns with zero accountability.
Clear, honest, and fast. Our return policy is built to protect your investment, not dodge responsibility.
Support
Frustrating automated responses
Fast, helpful and always supportive
Order Processing
Delays and lack of communication
Instant processing and updates
Shipping
Slow, unreliable and delayed service
Fast, insured, trackable shipping
Pricing
Deceptive pricing practices
Lowest prices, no surprises
Return & Warranty
Frustrating, misleading return policies
Clear, honest return policy
Specifications
| Official Product Name | Kinvent K-Deltas XL |
| Primary Measurement Type | Standard force measurement |
| Platform Dimensions Each | 49×810×470 mm each platform size |
| Platform Weight Each | 13.3 kg per platform weight |
| Maximum Force Capacity | 2400 kg per platform maximum |
| Acquisition Frequency Rate | 4000-Hz acquisition frequency |
| Wireless Range Distance | 20-meter wireless range |
| Battery Operating Time | Twenty-hour rechargeable battery operating life |
| Charging Time Requirement | Two-hour complete battery charging time |
| Measurement Accuracy Rating | ±0.1% force accuracy |
| Automatic Sleep Delay | Ten-minute automatic sleep |
Warranty & Returns
Return Policy
To request a return or refund, customers can use our contact form, email info@peakprimalwellness.com, or phone – (877) 689-4898 . Once the product is inspected and confirmed to be in brand new condition, we will initiate the refund, which typically takes 5–7 business days to post back to the original payment method. Refunds can be applied via the customer’s preferred method, including card or bank transfer. Shipping instructions and the return address will be provided upon contacting customer service. Please include photos if the product arrives damaged. Click here to view our complete return policy for more details.
Shipping Policy
Customers may contact us by phone or email anytime to inquire about the status of their order. While we may not always have a tracking link available before the order ships, we are happy to check its current status for you. If an item is never received, please contact us immediately. We will promptly file a claim on your behalf and ship a replacement to ensure you receive your product as soon as possible. Click here to view our complete Shipping policy for more details.
Frequently Asked Questions
How are both XL platforms paired?
Power on both K-Deltas XL platforms, select the intended force-plate protocol in the Kinvent App, and confirm that each platform connects.
How should the XL platforms be positioned?
Place both platforms on a rigid, level, dry surface, align them for the planned stance or movement, and verify stable contact.
How is platform zeroing performed?
Leave both XL platforms completely unloaded and run the Kinvent App zeroing procedure immediately before the testing sequence.
How should jump testing be prepared?
Clear the landing area, align the extra-large surfaces, explain and rehearse the jump protocol, zero both platforms, and supervise each trial.
How should balance testing be prepared?
Stabilize and align the platforms, define the required stance, complete unloaded zeroing, and ensure support is available if clinically needed.
How should battery status be checked?
Review both platform battery indicators in the Kinvent App before testing and recharge when either unit lacks sufficient session capacity.
How should the XL surfaces be cleaned?
Power down both platforms and wipe their surfaces with a soft, lightly damp cloth and approved mild cleaner without immersion.
How should K-Deltas XL be stored?
Store the powered-down platforms flat in a dry, protected area where the large surfaces, edges, and charging connections cannot be damaged.
