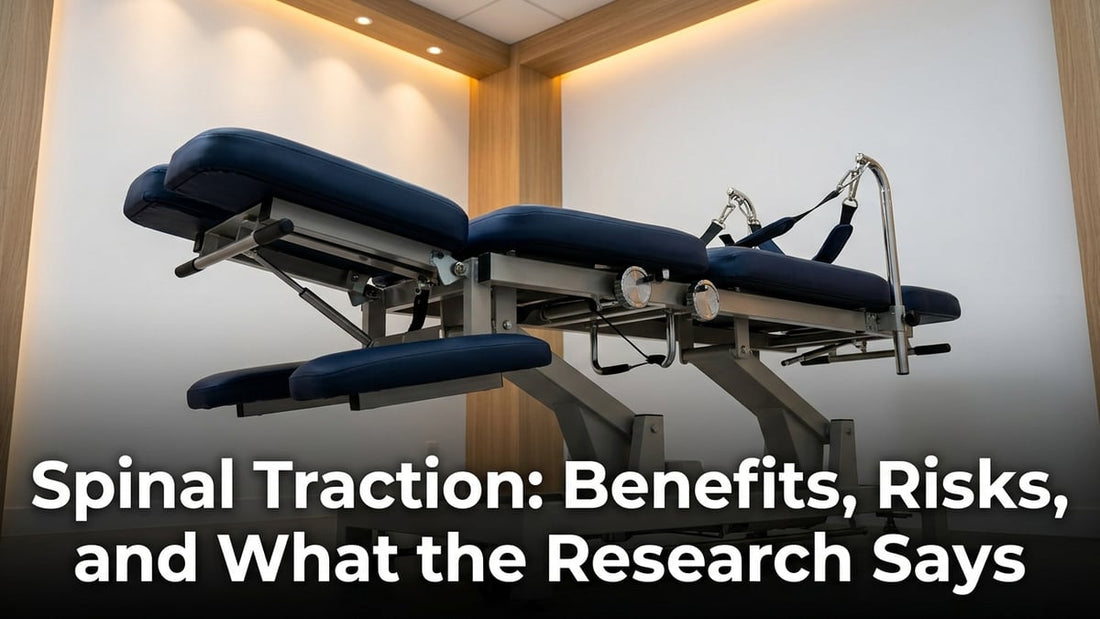

Spinal Traction: Benefits, Risks, and What the Research Says
Discover how spinal traction relieves back pain, and what science really says about whether it works.
Spinal traction applies a longitudinal distraction force along the spine to reduce intradiscal pressure, open intervertebral foramina, and relieve nerve root compression. Research supports it most strongly for disc herniation with radiculopathy; evidence for nonspecific low back pain is inconsistent, and patient selection matters more than any single traction parameter.
- Millimeters change disc pressure: Even small vertebral separation reduces intradiscal pressure enough to transiently reverse the gradient that pushes herniated material toward the nerve root.
- 25 to 50 percent body weight: Lumbar traction requires a distraction force of roughly 25 to 50 percent of body weight to produce measurable intervertebral separation, and that threshold shifts with positioning and harness fit.
- Four to eight week window: Mechanical traction added to a multimodal program shows the clearest benefit for radicular leg pain over four to eight weeks, but the evidence for nonspecific low back pain is far less convincing.
- These four protocol variables are interdependent, and the most common clinical mistake is adjusting one, usually force, without reconsidering the others.
- Traction before loading, not instead: Traction works best early in a session to reduce nerve irritation, then gives way to manual therapy and progressive loading, not as a replacement for active rehabilitation.
Where to start
Chattanooga Triton 6E DTS, Hi-Lo Traction Table, 90.5" x 37" x 31"
Chattanooga Galaxy TTET400, 4 Section Hi-Lo Traction Table, Foot Bar Lift, Black
What Spinal Traction Actually Does to the Spine
Spinal traction works by applying a longitudinal distraction force along the axis of the spine, creating separation between adjacent vertebral bodies. That separation, even measured in millimeters, changes the mechanical environment of the intervertebral disc and the surrounding neural tissue in ways that can interrupt the pain cycle.
The primary mechanical effect is a reduction in intradiscal pressure. Under normal compressive loading, a disc that has lost height or has a posterior annular tear can allow nuclear material to migrate toward the nerve root canal. Traction reverses that pressure gradient transiently, which is thought to encourage retraction of herniated nuclear material and reduce direct mechanical irritation of the nerve root. This is the core rationale behind using traction for radiculopathy and sciatica rather than for nonspecific low back pain alone.
Beyond the disc, distraction opens the intervertebral foramina. Foraminal height increases under sustained traction loads, which reduces compressive contact between the foramen's bony margins and the exiting nerve root. In patients with lateral recess stenosis or facet-driven foraminal narrowing, this effect can be clinically significant even if the structural cause is not fully reversible. The joint capsules of the facet articulations are also stretched under traction, which may reduce joint effusion and muscular splinting around the segment.
There is also a neurophysiological component that gets less attention than the mechanical one. Sustained tensile loading of paravertebral soft tissue activates mechanoreceptors and may inhibit nociceptive transmission through spinal gating mechanisms, similar in principle to what happens with other forms of mechanical stimulation in manual therapy. Whether traction's clinical benefit comes primarily from mechanical decompression or from this reflex modulation is still debated, and the honest answer is probably both, in proportions that vary by patient and pathology.
Lumbar Versus Cervical Traction: Different Mechanics, Different Goals
The physics differ substantially between the two regions, and that shapes how traction is applied and what it can reasonably achieve. The lumbar spine carries the majority of axial body weight, and effective pelvic traction requires a distraction force large enough to overcome both gravity and the resting tone of the paraspinal musculature. Clinical guidelines have generally suggested lumbar traction forces in the range of 25 to 50 percent of body weight to produce measurable intervertebral separation, though the exact threshold depends on patient positioning, harness fit, and whether the table uses a split-table design to eliminate friction from the lower extremities.
The Chattanooga TX Clinical Traction Unit supports a tension range up to 200 lb., which covers the full therapeutic range for the vast majority of adult patients. When used with a compatible pelvic harness, the QuickWrap DTS Belt Set accommodates lumbar and pelvic traction applications up to 300 lb. of force, giving clinicians headroom for larger patients without improvising a setup. Those specific figures matter practically: a unit with an inadequate tension ceiling forces the clinician to compensate with positioning, which introduces variables that make treatment less reproducible. You can read more about how pelvic traction forces are selected and applied based on patient presentation.
Cervical traction operates with much lower absolute forces, typically 10 to 15 lb. for muscle relaxation and up to 25 to 30 lb. for disc-level distraction in adults, but the cervical spine is proportionally more sensitive to force direction and patient positioning. Flexion angle at the time of traction determines which segment is most distracted: approximately 20 to 30 degrees of cervical flexion tends to target the mid-cervical levels most commonly involved in disc pathology. Getting that angle wrong does not just reduce efficacy; it can concentrate force at an unintended level. The selection criteria for cervical traction devices hinge heavily on how reliably a unit maintains that target angle through the session.
What the Research Actually Shows
The evidence base for spinal traction is more nuanced than either its advocates or critics tend to acknowledge. For lumbar disc herniation with associated radiculopathy, there is reasonable evidence that motorized traction produces short-term reductions in leg pain and functional disability, particularly when it is combined with other physiotherapy interventions rather than used as a standalone treatment. Several randomized controlled trials have found that continuous or intermittent mechanical traction added to a multimodal program outperforms sham traction or exercise alone over a four to eight week period.
The picture is less clear for nonspecific low back pain without radicular features. A number of well-designed trials and multiple systematic reviews have failed to demonstrate a clinically meaningful benefit of traction over placebo or active comparators in this population. This does not mean traction is ineffective for these patients universally; it means the research has not identified which subgroup benefits, and applying it indiscriminately to every low back pain presentation is not supported by the literature. Patient selection remains the variable that seems to determine outcome more than any specific traction parameter.
For the cervical spine, research on traction in cervical radiculopathy is generally more positive. Studies have consistently shown that intermittent mechanical cervical traction reduces arm pain, improves range of motion, and decreases self-reported disability in patients with confirmed disc herniation or foraminal stenosis at the symptomatic level. One frequently cited clinical prediction rule identified a set of baseline characteristics, including symptom peripheralization with cervical extension and relief with manual distraction, that predict a favorable response to cervical traction. Using that kind of clinical reasoning to select candidates is considerably more defensible than applying traction to all neck pain presentations.
Table Design and How It Affects Clinical Function
The table a clinician chooses is not separable from the traction outcome. A table that cannot position the patient reproducibly, that vibrates under load, or that requires the clinician to physically stabilize the patient during treatment introduces variability that undermines even a well-calibrated traction unit. Multi-section electric tables address most of those problems, but the section count and actuator quality determine how much positional flexibility you actually have.
The Chattanooga Triton 6E DTS is the most configurable option in this category. With six independently powered sections and six actuators, it allows the clinician to set the head section anywhere from 30 degrees of depression to 40 degrees of elevation, the pelvic section from 0 to 20 degrees, and the leg section from 0 to 45 degrees. That range matters when treating patients who cannot tolerate supine lumbar flexion, or when a prone position with specific hip angulation is needed to bias a particular spinal level. The table handles patients up to 440 lb. and adjusts in height from 19 to 37 inches, which accommodates transfer from a wheelchair without manual lifting. For practices treating a varied patient population, that breadth of adjustment is genuinely useful rather than a marketing specification.
The Chattanooga Galaxy tables take a different approach. The 4-section Galaxy TTET400 uses proprietary Hallotronic actuators and supports patients up to 500 lb., with a height range of 22 to 40 inches and a head/back section that can elevate to 85 degrees, making it function as a chair for patients who cannot lie flat initially. The 3-section Galaxy TTET300 shares the same Hallotronic actuator system and 440 lb. capacity in a more compact format, at 83 inches in length by 25 inches in width, which suits practices with tighter treatment bay dimensions. Both tables include a scissor frame with retractable multidirectional casters, so repositioning the table within the clinic does not require disassembly.
| Model | Sections | Max Load | Height Range | Head Elevation | Price |
|---|---|---|---|---|---|
 Chattanooga Galaxy TTET300, 3 Section Hi-Lo Traction Table, Foot Bar Lift, 86.6 x 33.5 x 31.5", Black |
3 | 440 lb. | 22–40" | 0–85° | $6,169.95 |
 Chattanooga Galaxy TTET300, 3 Section Hi-Lo Traction Table, Foot Bar Lift, 86.6 x 33.5 x 31.5", Gray |
3 | 440 lb. | 22–40" | 0–85° | $6,169.95 |
 Chattanooga Galaxy TTET300, 3 Section Hi-Lo Traction Table, Foot Bar Lift, 87 x 34 x 31.5", Graphite Gray |
3 | 440 lb. | 22–40" | 0–85° | $6,169.95 |
 Chattanooga Galaxy TTET300, 3 Section Hi-Lo Traction Table, Foot Bar Lift, 87 x 34 x 31.5", Navy Blue |
3 | 440 lb. | 22–40" | 0–85° | $6,169.95 |
 Chattanooga Galaxy TTET300, 3 Section Hi-Lo Traction Table, Foot Bar Lift, 87 x 34 x 31.5", Imperial Blue |
3 | 440 lb. | 22–40" | 0–85° | $6,169.95 |
| Chattanooga Galaxy TTET400, 4 Section Hi-Lo Traction Table, Foot Bar Lift, Black |
4 | 500 lb. | 22–40" | 0–85° | $7,257.23 |
The table comparison above covers the Galaxy range only. The Triton 6E DTS sits in a separate tier with its six-section configuration, 19 to 37 inch height range, and $14,043.14 price point. That gap reflects the difference in section count, actuator complexity, and the extended positioning options the Triton enables. For a practice focused primarily on spinal traction rather than a broader rehabilitation remit, one of the Galaxy configurations will handle the clinical requirement at a substantially lower cost.
The Parameters That Actually Drive Outcomes
Force, mode, duration, and frequency are the four variables that shape a traction protocol. They are interdependent, and adjusting one without reconsidering the others is a common source of inconsistent results in practice.
Force
Starting force for lumbar traction is typically conservative, often 20 to 30 lb. in the first session, with gradual progression toward the therapeutic window based on patient response. The therapeutic window for lumbar disc traction is generally accepted to begin around 25 percent of body weight, with forces in the 40 to 60 percent range used for more aggressive decompression. Forces above 50 percent of body weight require secure pelvic fixation and should only be used with patients who tolerate the lower range without symptom exacerbation. For cervical traction, progression is more cautious given the proximity of the vertebral arteries and the cord itself.
Mode: Continuous Versus Intermittent
Continuous traction holds the distraction force steady throughout the session. Intermittent traction cycles between a peak hold force and a partial rest force, with the ratio and cycle timing programmable on most clinical units. The physiological argument for intermittent traction is that the cyclical pressure change may produce a pumping effect on the disc, encouraging fluid and nutrient exchange within the avascular nucleus. For patients with acute muscle guarding, however, continuous traction at a lower force is often better tolerated initially, since the hold-rest cycling of intermittent mode can provoke reflex spasm if the rest tension drops too abruptly.
Duration and Frequency
Session duration in the research literature most commonly falls between 10 and 30 minutes. Longer sessions do not appear to produce proportionally greater benefit and may increase post-treatment soreness, particularly in the first few sessions. Treatment frequency is typically two to three sessions per week over four to six weeks, with reassessment at the two-week mark. If a patient shows no meaningful change in radicular symptoms after four to six sessions, continuing the same protocol is rarely justified. Either the diagnosis needs revisiting, the parameters need adjustment, or traction is not the right intervention for that presentation.
Risks and Contraindications Worth Taking Seriously
Spinal traction has a favorable safety profile when applied to appropriately selected patients, but the contraindication list is meaningful and should not be treated as a formality. Absolute contraindications include spinal cord compression with myelopathic signs, acute vertebral fracture, spinal instability from ligamentous disruption or prior surgical fusion at the target level, active infection or malignancy involving the spine, and vascular insufficiency including vertebrobasilar compromise for cervical traction.
Relative contraindications require clinical judgment rather than automatic exclusion. Severe osteoporosis, advanced degenerative spondylolisthesis, pregnancy (particularly for lumbar traction), inflammatory arthritides in an active flare, and recent spinal surgery all warrant careful consideration of force, positioning, and monitoring. Claustrophobia or significant anxiety around restraint can also be a practical barrier, since the pelvic and thoracic belts used in lumbar traction are firm and close-fitting by design.
Post-treatment soreness in the first two or three sessions is common and generally resolves within 24 hours. Patients should be advised about this in advance, partly because unexpected soreness after a treatment marketed as decompressive tends to erode confidence in the protocol. If soreness persists beyond 48 hours or increases with successive sessions, force reduction or a change in mode is warranted before continuing.
DTS Technology and How It Differs from Standard Traction
DTS, or Decompression Traction System, refers to a category of motorized traction in which the distraction force follows a logarithmic ramp curve rather than a linear one. The rationale is that a slow, smooth force onset prevents the paraspinal musculature from contracting reflexively in response to sudden stretch, which would counteract the decompression force at the disc. Standard motorized traction units ramp force linearly or in stepped increments, which is effective but can trigger guarding in reactive patients.
The Triton 6E is designated a DTS table, meaning it is purpose-built for use with Chattanooga's decompression traction protocol rather than functioning purely as a positioning surface for any traction unit. Understanding the distinction between the table and the traction unit matters practically: the tables in the Galaxy and Triton lines are sold separately from the traction units, and what DTS designation actually means for a clinical setup determines which table-unit pairings make sense for a given practice. Buying a DTS-capable table and pairing it with a non-compatible traction unit defeats the purpose of the system.
For practices building a traction program from scratch, the Chattanooga Traction Kit pairs the TX Traction Unit with a QuickWrap Belt Set and a Saunders cervical traction device, covering both lumbar and cervical indications in a single procurement. The TX unit's 0 to 200 lb. tension range and the belt set's 300 lb. maximum accommodate the full clinical range for most patient populations. That kind of integrated setup also simplifies staff training, since clinicians learn one control interface and one protocol framework rather than mixing components from different manufacturers.
Integrating Traction Into a Broader Rehabilitation Program
Traction is most effective as one component of a multimodal program rather than a standalone intervention. The evidence base consistently supports combining traction with manual therapy, stabilization exercise, and patient education, with the sequence typically running traction first to reduce acute neurological irritation, followed by manual work to normalize joint mobility, followed by progressive loading to restore segmental stability. Treating traction as a substitute for active rehabilitation rather than a facilitator of it is a misuse of the modality.
The split-table design of the Galaxy series, where the lower section separates to eliminate friction during lumbar traction, also means the table transitions immediately into a standard treatment surface for manual therapy and exercise instruction after the traction component ends. Clinicians do not need a separate treatment surface in the same bay, which has real implications for room layout and patient flow in high-volume practices. Practices browsing traction equipment options will find that table configurability and multi-use function are consistently what separate workable setups from purpose-limited ones.
Patient education also belongs in every traction treatment episode. Patients who understand why traction is being applied, what sensations to expect, and how their activity between sessions affects outcomes are more adherent and more likely to report symptom changes accurately. That reporting is what allows the clinician to adjust parameters appropriately. What to evaluate before purchasing a traction system includes not just the mechanical specifications but the clinical workflow the equipment needs to support.
Home Traction Versus Clinical Traction: Where the Line Is
The gap between clinical and home traction is substantial, and conflating them does patients a disservice. Clinical traction uses calibrated motorized units with precise force control, monitored by a clinician who can observe neurological response in real time and adjust mid-session. Home traction devices, which typically use gravity, door-mounted cervical units, or lower-force mechanical systems, produce much smaller distraction forces and have no monitoring component. They are not substitutes for clinical care in the acute or subacute phase of a disc injury.
That said, home devices serve a legitimate maintenance role for patients who have completed a clinical program and are managing a chronic condition. The key is appropriate patient selection and clinician-directed parameters. A patient who has responded well to cervical traction in clinic and has a stable, diagnosed condition is a reasonable candidate for a home unit under clinician guidance. A patient who has never had a clinical assessment and is self-treating based on symptom assumption is not. The criteria for determining whether a home traction setup is appropriate are worth reviewing carefully before advising patients in either direction.
More traction equipment worth a look
Chattanooga Galaxy TTET300, 3 Section Hi-Lo Traction Table, Foot Bar Lift, 87 x 34 x 31.5", Graphite Gray
Chattanooga Galaxy TTET300, 3 Section Hi-Lo Traction Table, Foot Bar Lift, 86.6 x 33.5 x 31.5", Black
Frequently asked questions
Is spinal traction suitable for everyone with back or neck pain?▾
No, and patient selection matters more than almost any other variable. The research supports traction most clearly for radiculopathy caused by disc herniation or foraminal stenosis, where there is a structural reason for the nerve to benefit from decompression. Nonspecific low back pain without radicular features has shown inconsistent results across multiple systematic reviews, so traction is not a default treatment for every spine complaint.
What are the main safety risks of spinal traction and who should avoid it?▾
Traction is generally well tolerated when applied correctly, but it is contraindicated in cases involving spinal instability, fracture, infection, malignancy, or severe osteoporosis, because adding a distraction force to an already compromised structure can cause serious harm. Force direction matters especially in the cervical spine, where an incorrect flexion angle can concentrate load at the wrong segment. Any new or worsening neurological symptoms during a session are a signal to stop immediately and reassess.
How much does a professional spinal traction table cost?▾
Clinical-grade traction tables vary considerably depending on the number of sections, actuator type, and weight capacity. The Chattanooga Galaxy 3-section Hi-Lo Traction Table is priced at $6,169.95, the 4-section Galaxy model at $7,257.23, and the Triton 6E DTS Hi-Lo table at $14,043.14. These prices cover the table itself; traction units and cervical traction attachments are sold separately for each model.
What does setting up a clinical traction table involve?▾
Each Chattanooga Galaxy table ships with a scissor frame, four feet, and four multidirectional retractable wheels, so repositioning within a clinic is straightforward. The Triton 6E uses four retractable feet and casters for similar mobility and locks into place during treatment. Because the traction unit is a separate purchase for all three models, setup also involves sourcing and connecting a compatible traction unit and, for cervical work, a cervical traction attachment.
What are the ongoing costs of running traction equipment?▾
Beyond the initial table purchase, the main recurring costs are harness and accessory replacement, routine upholstery maintenance, and periodic servicing of the actuator systems. The traction unit itself, sold separately from all Chattanooga models listed here, is an additional capital cost to budget for at the outset. Consumables like pelvic belts also wear with use, so a modest accessory budget is realistic for any active clinical setting.
How should a spinal traction table be maintained to stay in good working order?▾
The powered actuators on these tables, including the proprietary Hallotronic actuators in the Galaxy range and the six actuators in the Triton 6E, should be inspected periodically for smooth, friction-free operation. Upholstery should be cleaned with appropriate clinical-grade disinfectants and checked for wear, since both the Galaxy and Triton tables offer color options that can show cracking or fading when care is inconsistent. Retractable wheel locks and caster mechanisms should be tested regularly, as these are the safety-critical components during patient transfers.
How do I choose the right table size and capacity for my patients?▾
Weight capacity is the first check: the Galaxy 3-section and Galaxy 4-section tables have different ceilings, with the 3-section model rated to 440 lb. and the 4-section model to 500 lb. using Hallotronic actuators. Surface dimensions also matter for patient comfort; the Galaxy tables measure 83 in. x 25 in., while the Triton 6E offers a wider 90.5 in. x 37 in. surface, which is more accommodating for larger frames or complex positioning. The number of powered sections determines how much independent adjustment you have over head, pelvic, chest, and leg angles, which becomes relevant when treating varied diagnoses.
What mistakes do clinicians most commonly make when using spinal traction?▾
Applying traction indiscriminately to all low back pain patients is the most common error, since the evidence supports it specifically for radiculopathy rather than nonspecific pain. Underestimating the importance of cervical flexion angle is another frequent problem: the target is roughly 20 to 30 degrees to reach the mid-cervical levels most often involved in disc pathology, and getting that wrong can shift force to an unintended segment. Starting with too high a force too quickly is also an issue; lumbar traction typically requires 25 to 50 percent of body weight to produce measurable separation, but progressing gradually allows the clinician to monitor tolerance and adjust before problems develop.
