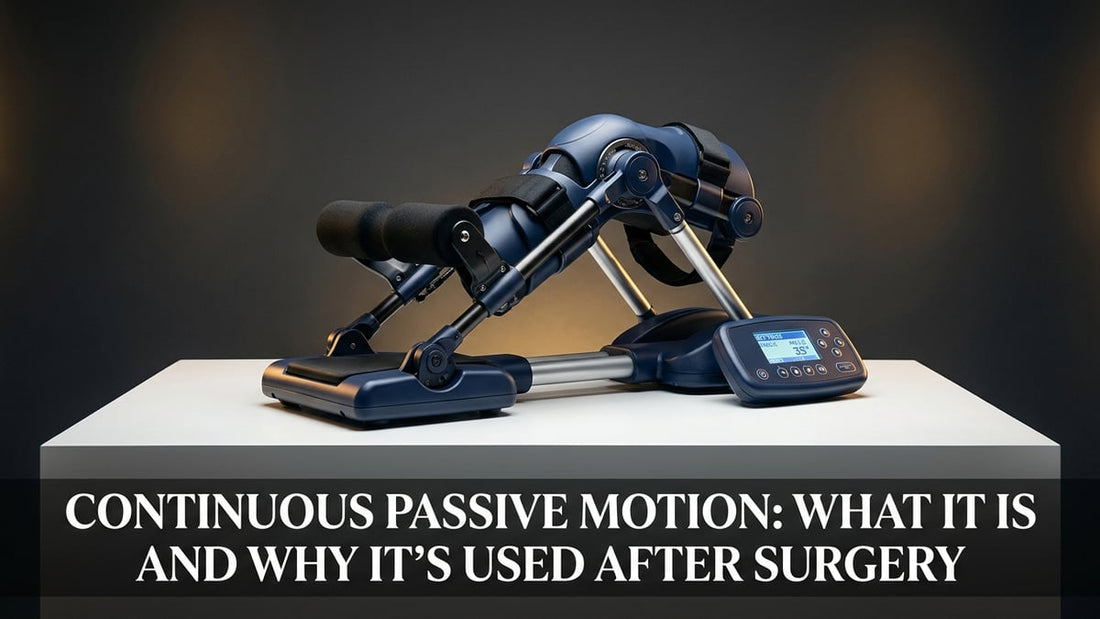

What Is Continuous Passive Motion?

Continuous passive motion is a postoperative rehabilitation technique in which a motorized device moves a joint through a prescribed arc of motion repeatedly, without any muscular effort from the patient. The joint is carried through flexion and extension (and in some cases additional planes) by the machine, while the surrounding muscles remain relaxed. That distinction, passive rather than active, is the whole point.

The clinical rationale traces back to work by orthopedic surgeon Robert Salter in the 1970s and 1980s, whose animal research demonstrated that articular cartilage heals better under controlled, continuous movement than under immobilization. Salter's studies in rabbits showed that joints kept moving after osteotomy or cartilage repair had markedly superior tissue regeneration compared with joints placed in plaster casts. That foundational research shaped how surgeons and physical therapists think about postoperative joint care to this day.

The term "continuous" is somewhat literal. CPM devices are typically prescribed for use across multiple hours per day, sometimes spanning the entire overnight period in an inpatient setting, and continued at home during the early recovery weeks. The device cycles through its programmed range repeatedly at a controlled speed, creating a rhythmic pumping effect that supports synovial fluid circulation within the joint capsule.

The Physiology: Why Controlled Motion Helps Healing

Articular cartilage is avascular. It receives its nutrition not through a direct blood supply but via diffusion from the synovial fluid that bathes the joint. Movement accelerates that fluid exchange, which is why immobilization after surgery is now understood to be actively harmful to cartilage health over the medium term. CPM essentially keeps the joint's internal environment more biologically active during a period when the patient cannot exercise volitionally.

Beyond cartilage nutrition, continuous motion influences the formation of scar tissue. After joint surgery, the body lays down collagen as part of the healing response. If the joint is held still, that collagen organizes into dense, disorganized scar tissue, the kind that causes joint stiffness and limits range of motion for months afterward. Gentle repetitive motion encourages collagen fibers to align along lines of stress, producing more functional tissue and reducing adhesion formation within the capsule and surrounding structures.

There is also a vascular component. Postoperative edema is partly driven by venous and lymphatic stasis. The pumping action of CPM promotes return circulation in the periarticular soft tissues, which reduces swelling and, consequently, pain. Some studies have documented lower analgesic requirements in patients using CPM compared with those receiving immobilization or earlier ambulation alone, though the magnitude of this effect varies by joint and by the surgical procedure performed.

Which Joints Are Treated with CPM

The knee is by far the most common application. Total knee arthroplasty, ACL reconstruction, tibial plateau fracture repair, and patellofemoral procedures have all been associated with CPM use in the postoperative protocol. The knee's hinge-like anatomy makes it straightforward to design a device around, and the consequences of knee stiffness, namely difficulty walking, climbing stairs, and standing from a seated position, give clinicians a strong incentive to preserve early range of motion.

The elbow and ankle, though far less discussed, present some of the most challenging joint rehabilitation scenarios precisely because stiffness develops rapidly and is difficult to reverse. these joints respond poorly to prolonged immobilization, and the specialized CPM devices designed for them reflect that clinical urgency. The Kinetec 6080 Elbow CPM, for instance, achieves a range of 10 degrees extension to 135 degrees flexion with fixed, adjustable pronation and supination in an abducted, rotated plane, replicating the actual biomechanical motion of the elbow rather than a simplified arc.

Shoulder CPM has a smaller but real evidence base, particularly following rotator cuff repair and shoulder arthroplasty. The shoulder's ball-and-socket anatomy and the complexity of its surrounding soft tissues make passive motion devices somewhat harder to engineer, and protocols vary more widely between surgeons. Hip CPM devices also exist, though they see narrower adoption in clinical practice compared with the knee.

CPM Machine Types and How They Differ

At a mechanical level, all CPM devices share the same basic architecture: a motorized drive unit, a limb support cradle, and a control interface that allows the clinician or patient to set the range of motion, speed, and sometimes force limits. Beyond that, the differences between models are clinically meaningful.

Knee CPM machines are the most standardized. The OptiFlex K1, for example, weighs 23 lbs (10.4 kg) and measures only 38 inches (97 cm) in length, making it one of the lighter units available and genuinely manageable for home use. Its ROM spans from negative 10 degrees to 120 degrees, the reversible footplate accommodates shorter legs, and the on-board power supply removes the external transformer from the equation. The patient lockout feature prevents accidental parameter changes during a session, which matters when the device is running overnight.

Ankle CPM devices introduce a meaningful design challenge because the ankle does not move in a single plane. The Kinetec Breva addresses this by providing motion in two planes simultaneously, covering plantar flexion, dorsiflexion, inversion, and eversion. That four-directional capability reflects the anatomy of the talocrural and subtalar joints more accurately than single-plane devices can. The Breva is also designed for use either in a chair or in bed, which matters for postoperative patients who have limited mobility. You can browse the full range of CPM machines to compare joint-specific models side by side.

Control interfaces vary too. Some units ship with a classic hand control, a simple keypad with clearly labeled buttons that patients can operate without assistance. Others offer a comfort hand control, which may have a different ergonomic layout. For a patient spending several hours a day using the device, the tactile quality of the controller is not a trivial consideration.

CPM After Knee Surgery: What the Evidence Shows

The evidence base for CPM after total knee arthroplasty (TKA) is the most thoroughly developed of any joint, and it is also the most contested. Early randomized controlled trials consistently showed that CPM reduced time to achieving 90 degrees of flexion and shortened hospital stays. More recent systematic reviews have produced a more nuanced picture: CPM does appear to reduce short-term pain and swelling, but its long-term advantage over standard physiotherapy in terms of final range of motion is less clear-cut.

What the research consistently supports is the benefit of early motion itself, regardless of whether it is delivered passively or actively assisted. The question is often not CPM versus nothing, but CPM as an adjunct to physiotherapy versus physiotherapy alone. In that framing, the device's value depends heavily on protocol. A CPM machine running for two hours per day while the patient is also doing active exercises represents a different intervention than one running for 18 hours a day in lieu of therapy.

For patients who struggle to perform active exercises in the first days after surgery, whether because of pain, muscle inhibition from anesthesia, or simple difficulty motivating the joint, CPM fills a gap that physiotherapy cannot easily cover. the recovery timeline after knee surgery is shaped substantially by what happens in the first two to four weeks, and maintaining even modest range of motion during that window has downstream effects on overall functional recovery.

Comparing CPM Machines by Joint and Specification

Selecting a CPM machine involves matching the device's mechanical capability to the patient's anatomy, the surgical procedure, and the setting in which it will be used. The table below covers the current models to give a clear picture of how they differ across joint type, range of motion, and price.

Model	Joint	ROM	Price
OptiFlex K1 Knee CPM Machine with Classic Hand Control	Knee	-10 to 120°	$3,855.55
OptiFlex K1 Knee CPM Machine with Comfort Hand Control	Knee	-10 to 120°	$3,855.55
Kinetec Breva Ankle Continuous Passive Motion (CPM) Machine	Ankle	Multi-plane (plantar/dorsi/inv/ev)	$7,375.50
Kinetec 6080 Elbow Continuous Passive Motion (CPM) Machine	Elbow	Ext 10° to flex 135°	$7,645.50

The price differential between knee and non-knee units reflects both engineering complexity and market volume. Knee CPM machines are produced at higher volumes, which keeps costs lower. Ankle and elbow units demand more sophisticated mechanical design to replicate multi-planar or anatomically offset motion accurately, and that is reflected in the price. If your practice is evaluating these for a rehabilitation department rather than a single patient, the total cost of ownership including maintenance and replacement parts is worth investigating directly with the supplier.

Setting Up and Calibrating a CPM Device

Improper setup is probably the most common reason CPM therapy underdelivers. A limb that is poorly aligned in the cradle will experience shear forces at the joint rather than the intended flexion-extension, which can be painful and counterproductive. Before the first session, the clinician should confirm that the patient's joint axis aligns with the device's pivot axis, and that the limb support is positioned to prevent both excessive pressure on bony prominences and unintended rotation.

1. Set the initial ROM conservatively

   Begin at a range the patient can tolerate without bracing or guarding. For most knee patients, starting between 0 and 40 degrees is reasonable in the first 24 to 48 hours. The goal is comfort and compliance, not maximum stretch on day one.

2. Verify limb alignment before starting

   The mechanical joint of the device should align as closely as possible with the anatomical joint of the patient. A small offset may be unavoidable, but large offsets produce compensatory forces that defeat the purpose of the device.

3. Adjust speed to patient tolerance

   Slower cycle speeds are generally better tolerated in the acute phase. As swelling decreases and pain subsides over the first week, speed can be increased incrementally. The patient should feel movement and gentle stretch, not pain.

4. Progress the range at a sustainable rate

   Typical protocols advance the ROM by 5 to 10 degrees per day as tolerated, always guided by surgeon protocol. Advancing too aggressively in the extension direction after TKA can stress the posterior capsule; flexion advances are usually more forgiving.

5. Confirm patient lockout is active for overnight use

   When the device is running while the patient sleeps, the lockout feature prevents inadvertent changes to speed or range settings. Verify this is engaged before the patient is left unsupervised.

Contraindications and Clinical Cautions

CPM is not appropriate for every postoperative patient, and applying it without considering contraindications carries real risk. Unstable fracture fixation is an absolute contraindication: a joint whose bony structures are not securely stabilized will not benefit from cyclic loading, and motion may disrupt the repair. Any active infection within or around the joint also contraindicates CPM until the infection is controlled.

Deep vein thrombosis (DVT) requires careful evaluation. Some protocols pause CPM if DVT is diagnosed, on the grounds that mechanical compression of the calf or thigh by the device's cradle could theoretically mobilize a thrombus. Other clinicians continue CPM on the basis that venous stasis from immobility carries its own thromboembolic risk. This is a decision that belongs to the treating physician, not the rehabilitation team unilaterally.

Skin integrity deserves attention. Patients with peripheral neuropathy, thin skin from long-term corticosteroid use, or vascular compromise may develop pressure injuries from prolonged contact with the limb support. Regular skin inspection at every session change is standard practice, and appropriate padding at bony prominences reduces risk substantially.

For practitioners evaluating which CPM brand to use across different patient populations, the practical differences in limb cradle design and padding systems are worth considering alongside the raw mechanical specifications.

CPM in the Home Versus a Clinical Setting

The shift of CPM therapy from inpatient to outpatient and home settings has been one of the more significant changes in rehabilitation practice over the past two decades. Shortened hospital stays after joint surgery mean that patients are often discharged within one to three days of a procedure, and if CPM is part of their protocol, the device comes home with them.

Home use creates compliance challenges that clinical use does not. A patient in a ward bed has a nurse checking settings and ensuring the device is running. At home, adherence depends on the patient's motivation, the caregiver's involvement, and how comfortable the setup is. This is where the OptiFlex K1's design choices, its low weight, its single-screw drive, its on-board power supply, translate into genuine practical value. A device that is cumbersome to set up will run for fewer hours per day than one a patient can position independently.

Telehealth check-ins during home CPM use have become more common, allowing physiotherapists to review reported ROM progress and compliance without requiring a clinic visit. Some protocols involve the therapist adjusting the prescription remotely based on the patient's daily logs, which keeps the progression rational without burdening the patient with frequent travel while still recovering from surgery.

Practitioners who manage rehabilitation caseloads across both inpatient and outpatient settings often stock both a clinical workhorse and a lighter home-use unit. The range of motion equipment available alongside CPM devices, including bracing and manual therapy tools, tends to complement rather than duplicate what CPM does mechanically.

Understanding CPM Pricing and Procurement

The price range for CPM devices reflects meaningful differences in engineering, not just brand positioning. what drives CPM costs from around $3,800 to over $19,000 comes down to joint complexity, motion planes, control system sophistication, and construction quality. A knee CPM like the OptiFlex K1 at $3,855.55 occupies the accessible end of the clinical-grade spectrum without sacrificing reliability. Ankle and elbow units like the Kinetec Breva ($7,375.50) and Kinetec 6080 ($7,645.50) cost more because the mechanical problem they solve is substantially harder.

For clinical purchasers, the unit cost is only part of the calculation. Durability, warranty terms, availability of replacement parts, and the manufacturer's support for clinical setup all affect the real cost over a multi-year service life. Kinetec and OptiFlex are both established names in this space, and their products are designed for repeated use across multiple patients rather than single-use disposal.

For individual patients purchasing or renting a device for home recovery, the total duration of the protocol matters for the cost decision. A six-week protocol may be served well by rental through a medical equipment provider, while a patient who anticipates multiple surgeries or who manages a chronic joint condition may find outright purchase more economical over time. This is a conversation worth having with the prescribing surgeon before the equipment decision is made.

Integrating CPM with a Broader Rehabilitation Program

CPM works best as one component of a structured rehabilitation protocol, not as a standalone intervention. In the first postoperative days, when active exercise capacity is limited by pain, swelling, and muscle inhibition, CPM holds the joint's motion gains. As the patient's active capacity improves, the balance shifts toward active and active-assisted exercises, with CPM playing a decreasing role.

A commonly used framework positions CPM as dominant in days one through seven, transitions to a shared role with active therapy in weeks two and three, and phases it out by week four to six in most knee protocols. Elbow and ankle protocols may follow a different timeline given those joints' faster propensity for stiffness. The Kinetec 6080, for example, with its wide flexion range of 135 degrees and precise pronation/supination positioning, is often kept in the protocol longer for complex elbow procedures precisely because achieving that end-range actively is difficult early in recovery.

Communication between the prescribing surgeon, the physiotherapist, and the patient is what makes the protocol work. The surgeon defines the tissue constraints and the motion limits. The physiotherapist interprets those limits into daily practice and adjusts as the patient progresses. The patient's feedback, particularly around pain during the CPM cycle, is the real-time signal that the program is on track. No machine setting overrides clinical judgment, and the numbers on the controller are always working within a biological system that has its own pace.
