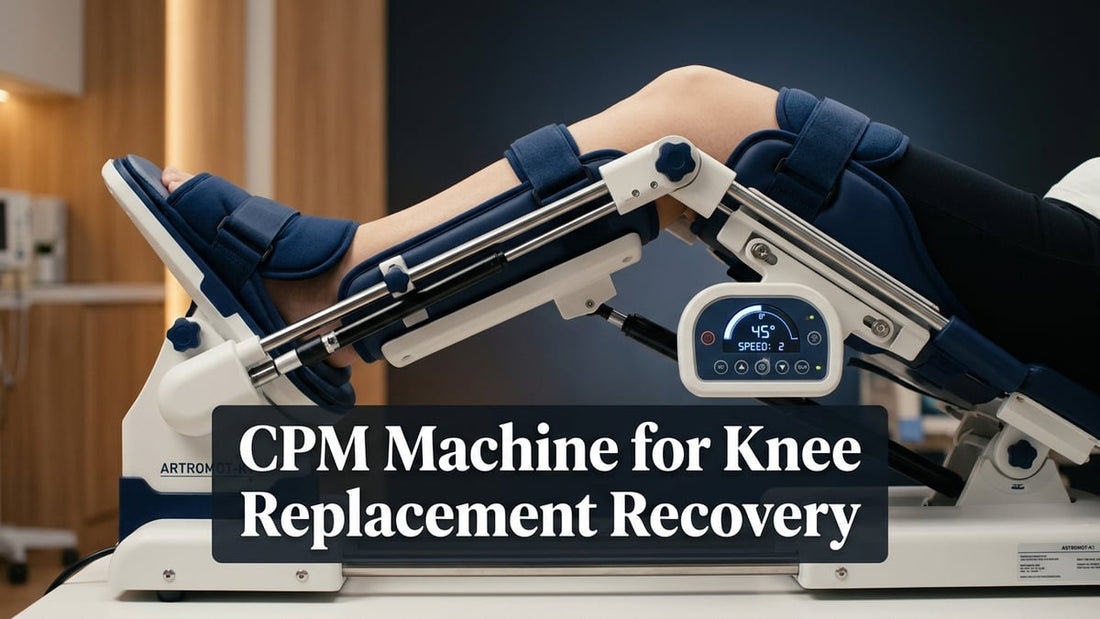

CPM Machine for Knee Replacement Recovery
Discover how CPM machines speed up knee replacement recovery by restoring mobility, reducing stiffness, and improving long-term outcomes.
A CPM machine for knee replacement recovery moves the joint through a controlled flexion-extension arc passively, doing the work so inflamed tissue does not have to. Use it in the first two to three weeks post-surgery to limit adhesion formation, support synovial fluid circulation, and maintain mobility between physical therapy sessions.
- 0 to 120 degrees minimum: A knee CPM machine needs to cover at least 0 to 120 degrees of flexion and allow five-degree increment adjustments to support a structured postoperative protocol.
- 90 degrees by week one: Most protocols advance flexion five to ten degrees per day, targeting 90 degrees by the end of the first week and 110 to 120 degrees within two to three weeks.
- Rental typically runs 200 to 400 dollars per month, so a six-week recovery is often the crossover point where purchasing starts to make more financial sense.
- Cold before CPM: Applying cold to the knee before each session reduces swelling and intra-articular pressure, which lets patients tolerate a wider arc for longer and improves overall compliance.
- Unit weight matters at home: For home discharge programs, a lighter machine around 23 pounds makes a real difference since heavier units tend to get abandoned when patients find them hard to position alone.
Where to start
SCIFIT IF PRO2 Accessible Active-Passive Total Body Rehabilitation Exerciser with Wheelchair Ramp & Premium Seat
OxyRevo Space60 Pro Standard 2.0 ATA Hard Shell Sitting Hyperbaric Oxygen Chamber
What a CPM Machine Actually Does After Knee Replacement Surgery
A continuous passive motion machine moves a surgically repaired joint through a controlled arc of flexion and extension without any muscular effort from the patient. The operative word is passive: the machine does the work, the joint simply follows. After total or partial knee replacement, that distinction matters because the surrounding tissue is acutely inflamed and the patient has neither the strength nor the pain tolerance to replicate that motion voluntarily in the early postoperative window.
The physiological rationale is well established. Synovial fluid circulation depends partly on joint movement, and prolonged immobilization after arthroplasty has been linked to increased intra-articular adhesion formation, slower cartilage nutrition, and reduced early range of motion gains. CPM therapy addresses all three. Studies in orthopedic rehabilitation generally document that early mobilization after knee replacement, even when passive, correlates with reduced joint stiffness and shorter hospital stays, though the long-term range-of-motion advantage over aggressive physical therapy alone is still debated in the literature.
Where CPM machines tend to show the clearest benefit is in that acute phase: the first two to three weeks when voluntary active exercise is limited by pain and swelling. For clinicians, the machine is not a substitute for physical therapy but a bridge that keeps the joint mobile during the hours between therapy sessions. That framing helps set realistic expectations for patients who sometimes expect the machine to do all the rehabilitative work.
What to Look For in a Knee CPM Machine
The market segments into a handful of meaningful specifications. Not all of them get equal attention in product listings, but they all affect clinical outcomes and patient compliance.
Range of Motion and Adjustability
A knee CPM machine needs to cover 0 to at least 120 degrees of flexion to be useful through the full recovery arc. Most knee arthroplasty protocols begin at a limited range, often 0 to 40 or 0 to 60 degrees, and progress incrementally. The machine must allow precise, reproducible settings so a clinician or the patient can advance the arc by five-degree increments without guesswork. Machines with coarse or poorly calibrated adjustments make it difficult to follow a structured protocol.
Speed Control
Cycle speed, typically expressed in cycles per minute, affects both comfort and therapeutic effect. Early in recovery, slower speeds reduce pain response and allow soft tissue to accommodate the movement. Most units support variable speed across a range, and the ability to fine-tune this is worth prioritizing over a machine that only offers low, medium, and high settings.
Limb Fit and Leg Length Adjustment
A machine that does not fit the patient correctly applies torque in the wrong plane, stresses the surgical site, and causes pain that reduces compliance. Leg length adjustment is the critical fit variable for knee CPM units. The segment between the knee joint center and the foot cradle must align with the patient's anatomical axis, and that distance varies considerably between patients. Machines with a broad adjustment range accommodate more patients without improvised workarounds.
Weight and Portability
For home use after discharge, weight is a practical concern. A heavier unit is harder for a patient to position independently, and most knee replacement patients are elderly or have limited upper body strength in the early postoperative period. The OptiFlex K1 is notable here: at 23 lbs, it is among the lightest knee CPM machines available, which matters when the patient or a caregiver has to move it on and off the bed several times a day. Lighter units also tend to create less noise, which improves overnight compliance.
Hand Control Design
The hand control is the interface the patient uses most. It needs to be legible, operable with one hand, and intuitive enough that a groggy postoperative patient can use it without coaching. Some units offer interchangeable hand controls to accommodate different patient needs. The OptiFlex K1, for example, is available with classic, comfort, and standard hand control variants, each slightly different in layout and tactile feedback. That flexibility matters in a clinical rental fleet where patients vary widely.
Comparing Knee CPM Machines: Specs and Price
The table below covers the units PPW stocks for knee and elbow CPM therapy. Spec gaps reflect what the manufacturers publish; nothing is estimated.
| Model | Weight | Hand Control | Price |
|---|---|---|---|
 OptiFlex K1 Knee CPM Machine with Classic Hand Control |
23 lbs (10.4 kg) | Classic | $3,855.55 |
 OptiFlex K1 Knee CPM Machine with Comfort Hand Control |
23 lbs (10.4 kg) | Comfort | $3,855.55 |
 OptiFlex K1 Knee CPM Machine with Standard Hand Control |
23 lbs (10.4 kg) | Standard | $3,855.55 |
 Kinetec Spectra Essential Knee CPM Machine |
Not published | Standard | $5,035.50 |
 Kinetec Spectra Knee CPM Machine |
Not published | Standard | $6,115.50 |
 Kinetec 6080 Elbow Continuous Passive Motion (CPM) Machine |
Not published | Standard | $7,645.50 |
The three OptiFlex K1 variants are mechanically identical units. The only difference is the hand control included, and those controls are interchangeable after purchase. Clinics building a rental fleet can standardize on one hand control type across units, or stock a mix to match patient preference. The Kinetec Spectra line adds features and price in two tiers, with the full Spectra sitting about $1,100 above the Essential. The Kinetec 6080 is an elbow-specific unit and appears here for completeness, but it has no application in knee replacement recovery.
OptiFlex vs. Kinetec for Post-Arthroplasty Use
The two brands that dominate this segment at PPW are OptiFlex and Kinetec, and the choice between them usually comes down to patient profile, clinical setting, and budget. A full breakdown of each brand's philosophy and construction approach is covered in the comparison between these two CPM brands, but the key points for knee replacement specifically are worth addressing here.
The OptiFlex K1's primary advantage is its 23 lb weight. For home discharge programs where the patient or a family member is responsible for positioning the machine, that lightness is a genuine clinical advantage. Heavier units get left in the corner after the first day when the patient finds them difficult to handle alone. The K1's interchangeable hand controls also give clinics flexibility without requiring separate inventory.
The Kinetec Spectra line is positioned above the OptiFlex on price and typically offers additional refinements in drive mechanism smoothness and programming. The Essential sits at roughly $1,200 more than the K1, and the full Spectra adds another $1,000 to that. For outpatient rehabilitation facilities running high patient volumes, the Kinetec's build quality may justify the premium through longer service life. For a single home purchase supporting one recovery, the K1 delivers the core functionality at a lower cost. If you are evaluating the Kinetec Spectra in more depth, the Spectra model review covers its specific settings and construction in detail.
How CPM Machines Are Used in Knee Replacement Protocols
Postoperative CPM protocols vary considerably between surgeons and institutions, and this is one area where a CPM machine's adjustability becomes a practical requirement rather than a nice-to-have. Most protocols start the machine within 24 hours of surgery, sometimes in the recovery room. Early sessions typically run two to four hours at a time, with the joint set to a comfortable range that does not provoke excessive pain.
Progression is usually incremental. A common approach advances the flexion limit by five to ten degrees each day as swelling permits, targeting 90 degrees of flexion by the end of the first week and 110 to 120 degrees within two to three weeks. The machine's speed is often kept slow initially, around one cycle per minute, and increased as the patient becomes more comfortable. Extension goals are equally important, since a persistent flexion contracture after knee replacement is a significant functional problem, and the CPM machine's ability to hold the leg near full extension at the end of each cycle is part of how it helps prevent that.
Daily usage duration varies in the literature, but research generally supports cumulative use of six to eight hours per day in the early postoperative period for patients who cannot tolerate active exercise. For home programs, usage is typically split across two or three sessions rather than run continuously. Understanding what recovery with a CPM machine looks like week by week is important for setting patient expectations, and the details of that timeline are worth reviewing before discharge.
Buying vs. Renting: Which Makes Sense After Knee Replacement
Most knee replacement patients use a CPM machine for two to six weeks, and the decision between purchasing and renting typically depends on the post-discharge plan, the patient's budget, and whether the unit needs to serve more than one recovery episode. Understanding what factors drive price at different tiers is covered in more depth in the article on CPM machine cost, but the practical framing is straightforward.
For a single patient recovering at home, purchasing a unit at the OptiFlex K1's price point involves an upfront cost of around $3,800. Rental rates through durable medical equipment providers typically run $200 to $400 per month depending on geography and the unit. A six-week rental generally costs less than half the purchase price, which makes rental the financially obvious choice for a single recovery. However, rental availability is increasingly unreliable in many markets as hospital discharge protocols have shifted, and some patients find they cannot source a rental unit quickly after discharge, which is when it matters most.
Purchasing becomes financially reasonable when the unit will be used for multiple surgeries, as in both knees over time, or when the clinical setting involves ongoing patient care. Outpatient clinics, physical therapy practices, and surgical centers almost always benefit from ownership over rental at the volumes they operate. The CPM machines collection at PPW covers all currently available units with full specifications, which helps in comparing ownership options side by side.
CPM Beyond the Knee: What Else These Machines Address
Knee replacement is the most common application for CPM therapy, but the underlying mechanism, controlled passive mobilization to reduce adhesion formation and promote synovial circulation, applies to other joints as well. Elbow and shoulder CPM machines address post-surgical rehabilitation for procedures ranging from total elbow arthroplasty to rotator cuff repair. The Kinetec 6080 in PPW's catalogue is an elbow-specific unit, designed for the different axis and load characteristics of that joint.
For patients or clinicians considering CPM therapy for joints other than the knee, the biomechanical demands differ enough that a knee unit cannot be adapted for use elsewhere. The application of CPM to less commonly treated joints involves different positioning requirements, different range parameters, and in some cases different evidence bases. A thorough overview of CPM machines for elbow, ankle, and hand covers the specific considerations for those joints. Similarly, shoulder CPM applications have their own set of protocol considerations driven by the anatomy of glenohumeral motion.
The practical takeaway for a knee replacement context is that investing in a knee CPM unit does not transfer to other joints if additional surgeries arise later. Each joint requires a purpose-built machine, and the CPM Kinetec line covers several of them across their product range, which is available through the Kinetec collection.
Integrating CPM with Other Recovery Modalities
CPM therapy works best as part of a broader recovery approach, not as a standalone protocol. In the early postoperative period, swelling management is as important as range of motion, and the two goals interact. Elevated swelling increases intra-articular pressure, which limits how far the joint can flex comfortably and reduces CPM compliance. Cold therapy applied to the knee before or during CPM sessions can meaningfully reduce that barrier, allowing patients to tolerate a wider arc for longer.
The sequence matters: applying cold first to reduce acute inflammation, then running the CPM session, tends to produce better compliance than running the machine through a hot, swollen joint. Some rehabilitation protocols also incorporate intermittent compression alongside CPM, using pneumatic wraps to drive fluid out of the joint space before passive motion begins. The combination of these approaches reflects how modern orthopedic rehabilitation has moved away from single-modality thinking toward layered protocols that address pain, swelling, and mobility simultaneously.
Neuromuscular electrical stimulation and early weight-bearing exercises are usually added once the CPM phase is complete or overlapping with it. The CPM machine's role is time-limited, but its contribution to reducing early stiffness and improving the starting point for active rehabilitation is clinically meaningful. Patients who enter active physical therapy with 90 degrees of flexion progress faster than those starting from 60 degrees, and that early difference compounds through the rehabilitation timeline.
Choosing the Right CPM Machine for Knee Replacement Recovery
For most home-use knee replacement recoveries, the OptiFlex K1 is the practical starting point. Its 23 lb weight makes independent use realistic for patients who would struggle with heavier units, the interchangeable hand controls accommodate varying dexterity and preference, and its price positions it as the lowest-cost purchase option in PPW's knee CPM lineup. The three hand control variants are otherwise identical machines, so the choice between them is genuinely just about which control interface suits the patient.
For clinical or institutional buyers, the Kinetec Spectra line merits serious consideration. The Essential covers the core functionality at a mid-range price, and the full Spectra adds refinements that justify the additional cost at high patient volumes. Neither Kinetec unit publishes its weight, so buyers who need portability data should contact the manufacturer or PPW directly before purchasing.
Regardless of which unit is selected, the machine's value is only realized if the patient uses it consistently and correctly. That means a proper fit during setup, clear instruction on the hand control, and a written protocol from the treating clinician that specifies starting range, progression schedule, and daily duration. A CPM machine sitting unused in the corner of a bedroom because the patient found it uncomfortable or confusing is not contributing to recovery. The hardware is only one half of the equation; the other half is the support structure around it.
For a closer look at how the OptiFlex K1 compares across its variants, the OptiFlex K1 review covers its construction, settings, and clinical positioning in detail, which can help both individual patients and clinical buyers make a confident decision before purchasing.
More cpm machines worth a look
Game Ready Med4 Elite Hot/Cold Compression & Contrast Therapy System
Kohler K-35848 Kohler x Remedy Place Ice Bath, 85 gal
Frequently asked questions
Is a CPM machine actually necessary after knee replacement, or is physical therapy enough?▾
CPM machines and physical therapy serve different roles in recovery. PT sessions are typically scheduled once or twice a day, which leaves long stretches where the joint sits still. A CPM machine fills those gaps by keeping the knee moving passively, which helps maintain synovial fluid circulation and reduce early adhesion formation. Where the evidence is clearest is in that first two to three weeks, when pain and swelling limit what a patient can do voluntarily.
Who is a CPM machine suitable for after knee surgery?▾
They are best suited for total or partial knee arthroplasty patients in the acute postoperative phase, particularly those who struggle to perform voluntary range-of-motion exercises due to pain or swelling. Elderly patients and those with limited mobility benefit the most, since the machine does the work without requiring muscular effort. Patients should always follow their surgeon's or physical therapist's protocol for when and how long to use one.
What are the main safety considerations when using a CPM machine at home?▾
Correct setup is the most important safety factor. If the machine's leg segment does not align with the patient's anatomical knee axis, it applies torque in the wrong plane and can stress the surgical site. Before discharge, patients should demonstrate they can operate the hand control independently, because misuse of the stop function is one of the most common reasons home compliance breaks down in the first week. Patients should also follow their prescribed range-of-motion settings and not advance the arc faster than their clinician recommends.
How much does a knee CPM machine cost?▾
The OptiFlex K1, available in three hand control variants, is priced at $3,855.55 regardless of which hand control is chosen. The Kinetec Spectra Essential comes in at $5,035.50, while the full Kinetec Spectra is $6,115.50, a difference of about $1,100 between those two tiers. These are purchase prices; some patients rent CPM machines through their hospital or insurer, which is a separate arrangement handled outside of a direct purchase.
How do you set up a knee CPM machine correctly at home?▾
The critical adjustment is leg length: the segment between the knee joint center and the foot cradle must align with your anatomical axis, and getting this wrong causes discomfort and can compromise the surgical site. Most protocols start at a limited arc, often 0 to 40 or 0 to 60 degrees of flexion, and advance in roughly five-degree increments as tolerated. Before leaving the hospital or clinic, have your care team confirm the settings and watch you operate the hand control, since that hands-on check catches most setup errors before they become problems at home.
What does it cost to run a CPM machine, and is maintenance a concern?▾
CPM machines are low-power electrical devices, so ongoing electricity costs are negligible. Maintenance for home users is generally minimal since there are no consumables to replace and the mechanical components are straightforward. Clinical rental fleets require more attention to hygiene, padding condition, and calibration checks between patients, but for a single home-use course of therapy lasting a few weeks, there is very little ongoing cost or upkeep involved.
How do you choose the right size CPM machine for your leg?▾
Leg length adjustment is the key sizing variable. The machine must accommodate the distance from your knee joint center to your foot, and that measurement varies considerably between patients. The OptiFlex K1, at 23 lbs, is designed to be repositioned easily by the patient or a caregiver, which matters given that most knee replacement patients are older adults with limited early upper-body strength. If you are at the extremes of height or have an unusual limb proportion, confirm with your provider that the specific model covers your measurements before committing to a unit.
What is the most common mistake patients make with a CPM machine after knee replacement?▾
Advancing the range of motion too quickly is the most frequent error. Patients who feel minimal discomfort sometimes push the arc forward faster than their protocol allows, which can increase swelling and set recovery back. The second most common issue is inconsistent use: skipping sessions or stopping the machine early because of discomfort, rather than adjusting the speed or angle and continuing. Both problems come from the same source: not fully understanding the protocol before going home, which is why a supervised demonstration before discharge makes a real difference.
